View larger
Images are for illustrative purposes only. Please refer to data sheet for details

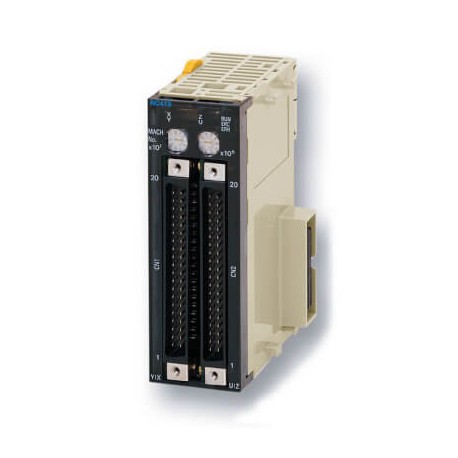

CJ1W-NC413 CJ1W0319A CJ1WNC413,1 OMRON Module positioner 4-axis 500kHz CJ1
CJ1W-NC413
CJ1W0319A
CJ1WNC413.1
OMRON
1 Pcs.
Module positioner 4-axis 500kHz CJ1
Position control unit, 4 axes, NPN open collector pulse string output, 500 KHz
Automation > PLC function/technology module
PLC based
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
I/O systemCJ I/O BusExpansion unit typeSpecial I/O UnitType of modulePositioningDigital input typeLine driver (RS-422), NPN, No voltage, PNPDigital output typeNPN, Open collectorNumber of encoder input channels0Max. number of PTP axes4Number of pulse output channels4Max. pulse output frequency500 kHzI/O connection typeFCN (plug not included)Number of I/O connectors2Detachable I/O connectorSuitable for safety functionsCommunication port(s)NoneProduct Height (unpacked)90 mmProduct Width (unpacked)31 mmProduct Depth (unpacked)66.5 mmProduct Weight (unpacked)150 g
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| SIL according to IEC 61508 (EF009889) | None |
| Explosion safety category for gas (EF003997) | None |
| Suitable for counting (EF003248) | No |
| Suitable for welding control (EF003251) | No |
| Suitable for multi-axis positioning (EF003267) | No |
| Suitable for flux measurement (EF003261) | No |
| Suitable for weighing (EF003249) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Suitable for incremental data detection (EF003258) | No |
| Suitable for cam controller (EF003263) | No |
| Suitable for SSI (EF003254) | No |
| Suitable for CNC (EF003256) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Suitable for NC (EF003253) | No |
| Suitable for detection absolute value (EF003259) | No |
| Suitable for flying saw (EF003264) | No |
| Redundancy (EF003156) | No |
| Suitable for path controller (EF003262) | No |
| Suitable for safety functions (EF001597) | No |
| Suitable for single-axis controller (EF003266) | Yes |
| Suitable for flux controller (EF003260) | No |
| Suitable for multi-axis control (EF003265) | No |
| Suitable for single-axis positioning (EF003268) | Yes |
| Suitable for pressure control (EF003252) | No |
| Suitable for temperature control (EF008344) | No |
| Suitable for electronic positioning (EF003255) | Yes |
| Width (EF000008) | 31 mm |
| Height (EF000040) | 90 mm |
| Number of functions (EF003244) | 25 |
| Depth (EF000049) | 66.5 mm |
