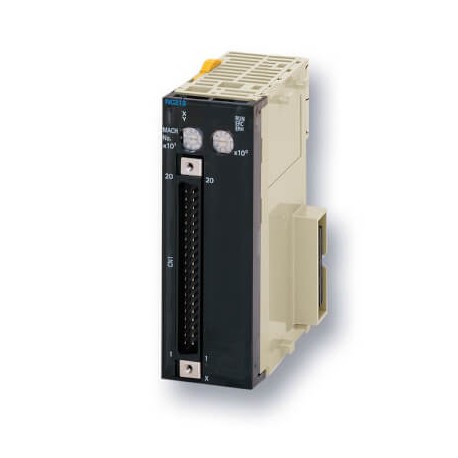

OMRON CJ1W-NC213 CJ1W-NC213 CJ1W0316G CJ1WNC213,1 OMRON Module positioner 2-axis 500kHz CJ1 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CJ1W-NC213 CJ1W0316G CJ1WNC213,1 OMRON Module positioner 2-axis 500kHz CJ1

CJ1W-NC213

CJ1W0316G

CJ1WNC213.1

OMRON

1 Pcs.

Module positioner 2-axis 500kHz CJ1 Position control unit, 2 axes, NPN open collector pulse string output, 500 KHz

Automation > PLC function/technology module
PLC based

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron Module positioner 2-axis 500kHz (CJ1W-NC213) manufactured for precise motion regulation and pulse generation in factory automation setups. Positioning units of this kind mount onto control racks to direct multi-axis mechanical actions, manage positioning profiles, and interface smoothly with industrial drives.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • I/O system: CJ I/O Bus
  • Expansion unit type: Special I/O Unit
  • Type of module: Positioning
  • Digital input type: Line driver (RS-422), NPN, No voltage, PNP
  • Digital output type: NPN, Open collector
  • Number of encoder input channels: 0
  • Max. number of PTP axes: 2
  • Number of pulse output channels: 2
  • Max. pulse output frequency: 500 kHz
  • I/O connection type: FCN (plug not included)
  • Number of I/O connectors: 1
  • Height: 90 mm
  • Width: 31 mm
  • Depth: 65 mm
  • Weight: 100 g
  • Performance level according to EN ISO 13849-1 (EF007399): Level a

More info

▲

Specifications

I/O systemCJ I/O Bus
Expansion unit typeSpecial I/O Unit
Type of modulePositioning
Digital input typeLine driver (RS-422), NPN, No voltage, PNP
Digital output typeNPN, Open collector
Number of encoder input channels0
Max. number of PTP axes2
Number of pulse output channels2
Max. pulse output frequency500 kHz
I/O connection typeFCN (plug not included)
Number of I/O connectors1
Detachable I/O connector
Suitable for safety functions
Height90 mm
Width31 mm
Depth65 mm
Weight100 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
