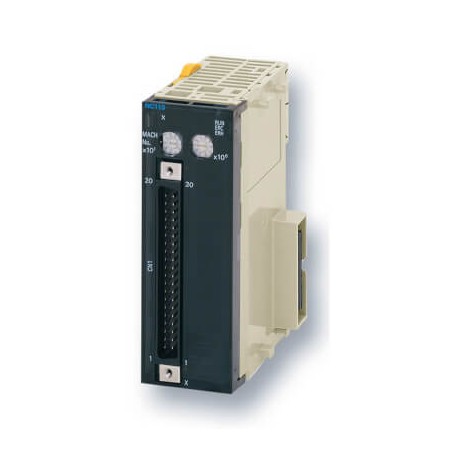

OMRON CJ1W-NC113 CJ1W-NC113 CJ1W0315R CJ1WNC113,1 OMRON Module positioner 1-axis 500kHz CJ1 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CJ1W-NC113 CJ1W0315R CJ1WNC113,1 OMRON Module positioner 1-axis 500kHz CJ1

CJ1W-NC113

CJ1W0315R

CJ1WNC113.1

OMRON

1 Pcs.

Module positioner 1-axis 500kHz CJ1 CJ1 1-axis positioner module Position control unit, 1 axis, NPN open collector pulse string output, 500 KHz

Automation > PLC function/technology module
PLC based

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A single-axis module positioner is implemented within PLC systems to govern the precise travel, velocity, and positioning of individual axes in automated industrial machinery. This Omron CJ1W-NC113 unit processes high-frequency command pulses to ensure accurate motion control for specialized manufacturing tasks. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Performance level according to EN ISO 13849-1: Level a
  • Suitable for counting: No
  • Suitable for welding control: Yes
  • Suitable for multi-axis positioning: No
  • Suitable for flux measurement: No
  • Suitable for weighing: No
  • Appendant operation agent (Ex ib): No
  • Suitable for incremental data detection: No
  • Suitable for cam controller: No
  • Suitable for SSI: No
  • Suitable for CNC: Yes
  • Appendant operation agent (Ex ia): No
  • Suitable for NC: No
  • Suitable for detection absolute value: No
  • Suitable for flying saw: No
  • Redundancy: No

More info

▲
I/O systemCJ I/O BusExpansion unit typeSpecial I/O UnitType of modulePositioningDigital input typeLine driver (RS-422), NPN, No voltage, PNPDigital output typeNPN, Open collectorNumber of encoder input channels0Max. number of PTP axes1Number of pulse output channels1Max. pulse output frequency500 kHzI/O connection typeFCN (plug not included)Number of I/O connectors1Detachable I/O connectorSuitable for safety functionsCommunication port(s)NoneProduct Height (unpacked)90 mmProduct Width (unpacked)31 mmProduct Depth (unpacked)66.5 mmProduct Weight (unpacked)100 g
