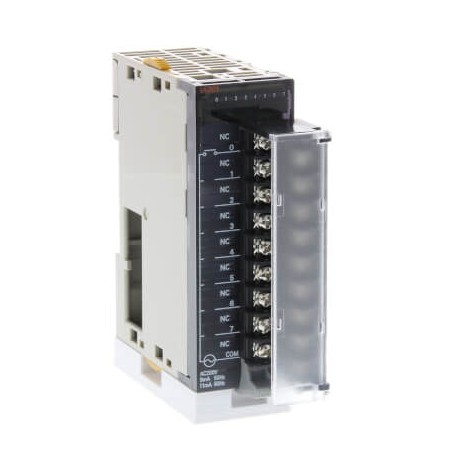

OMRON CJ1W-IA201 CJ1W-IA201 CJ1W0304C CJ1WIA201,1 OMRON Module 8 Inputs 200-240Vac Term. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CJ1W-IA201 CJ1W0304C CJ1WIA201,1 OMRON Module 8 Inputs 200-240Vac Term.

CJ1W-IA201

CJ1W0304C

CJ1WIA201.1

OMRON

1 Pcs.

Module 8 Inputs 200-240Vac Term. Digital input unit, 8 x 200-240 VAC inputs, screw terminal

Automation > PLC digital I/O-module
CJ1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron CJ1W-IA201 is a basic digital input module configured within the CJ I/O bus architecture to capture AC voltage signals from field devices. Programmable controller networks use input units of this type to monitor binary status information from switches, sensors, and other automation hardware. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • I/O system: CJ I/O Bus
  • Expansion unit type: Basic I/O Unit
  • Type of module: Digital I/O
  • Number of digital inputs: 8
  • Digital input type: AC voltage
  • Permitted voltage at input: 170-264 V
  • Number of digital outputs: 0
  • Output current: 0 A
  • I/O connection type: Screw
  • Number of I/O connectors: 1
  • Number of IOV (V+) terminals: 0
  • Number of IOG (V-) terminals: 0
  • Number of COM terminals: 1
  • Height: 90 mm
  • Width: 31 mm
  • Depth: 89 mm

More info

▲

Specifications

I/O systemCJ I/O Bus
Expansion unit typeBasic I/O Unit
Type of moduleDigital I/O
Number of digital inputs8
Digital input typeAC voltage
Permitted voltage at input170-264 V
Number of digital outputs0
Digital output typeNone
Output current0 A
Short-circuit protected outputs
I/O connection typeScrew
Number of I/O connectors1
Detachable I/O connector
Suitable for safety functions
Number of IOV (V+) terminals0
Number of IOG (V-) terminals0
Number of COM terminals1
Height90 mm
Width31 mm
Depth89 mm
Weight118 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
