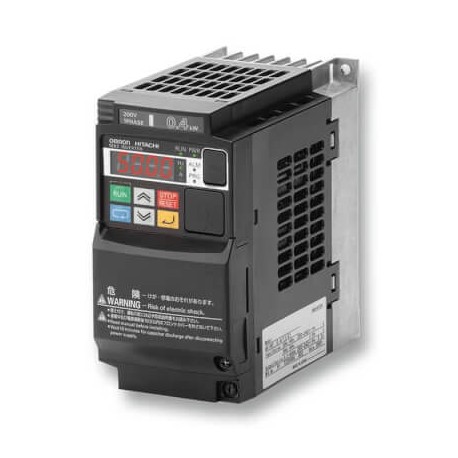

View larger
Images are for illustrative purposes only. Please refer to data sheet for details
3G3MX2-AB022-E 3G3M9322H 3G3MX2AB022ECHN OMRON MX2 single-Phase, 200-240VAC, 2.2/3.0 KW, 11.0/12.0 A(HD/ND),..
3G3MX2-AB022-E
3G3MX2-AB022-E
3G3MX2AB022ECHN
OMRON
1 unit
MX2 single-Phase, 200-240VAC, 2.2/3.0 KW, 11.0/12.0 A(HD/ND), vector
MX inverter drive, 2.2/3.0 kW (HD/ND), 11.0/12.0 A (HD/ND), 200 VAC, 1~ input, sensorless vector, max. output freq. 580Hz
Automation > Frequency converter less than 1 kV
MX2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Drive control methodOpen loop V/f, Open loop vectorDrive supply voltage230 V single phaseMax. motor output at constant torque2.2 kWMax. motor output at variable torque3 kWBuilt in EMC filterDegree of protection (IP)IP20Finless typeCompatible motor typeInduction or asynchronous motor, Permanent magnet motorRegenerative solutionsAs inverter optionCommunication port(s)MODBUS Slave, Serial RS-485, USBCommunication option(s)CompoNet Slave, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, PROFIBUS DP SlaveProduct Height (unpacked)128 mmProduct Width (unpacked)108 mmProduct Depth (unpacked)170.5 mmProduct Weight (unpacked)1800 g
| Feature Name | Feature Value |
|---|---|
| Mains frequency (EF006783) | 50/60 Hz |
| Type of converter (EF006978) | Other |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of phases input (EF007117) | 1 |
| Number of phases output (EF006998) | 3 |
| With PC connection (EF006107) | Yes |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for PROFIBUS (EF003052) | Yes |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for TCP/IP (EF003050) | Yes |
| Supporting protocol for BACnet (EF011944) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Application in domestic- and commercial area permitted (EF007295) | No |
| 4-quadrant operation possible (EF006803) | Yes |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| With control element (EF001538) | Yes |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for KNX (EF003055) | No |
| Application in industrial area permitted (EF007294) | Yes |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| With optical interface (EF003028) | No |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Supporting protocol for CAN (EF003053) | Yes |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for DeviceNet (EF003059) | Yes |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Integrated breaking resistance (EF007293) | Yes |
| Max. output frequency (EF007350) | 580 Hz |
| Number of HW-interfaces other (EF003027) | 1 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Max. output at linear load at rated output voltage (EF007364) | 2.2 kW |
| Relative symmetric net voltage tolerance (EF007453) | 10 % |
| Number of HW-interfaces USB (EF003025) | 1 |
| Width (EF000008) | 108 mm |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Max. output at quadratic load at rated output voltage (EF007366) | 3 kW |
| Number of HW-interfaces RS-485 (EF003023) | 1 |
| Nominal output current I2N (EF009561) | 12 A |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Height (EF000040) | 128 mm |
| Max. output voltage (EF009560) | 240 V |
| Depth (EF000049) | 170.5 mm |
| Relative symmetric net frequency tolerance (EF007454) | 5 % |
| Mains voltage (EF006780) | 200 V |
