3G3MX2-AB004-E 3G3M9316C 3G3MX2AB004ECHN OMRON MX2 single-Phase, 200-240VAC, 0.4/0.55 KW, 3.0/3.5 A(HD/ND), ..
3G3MX2-AB004-E
3G3M9316C
3G3MX2AB004ECHN
OMRON
1 Pcs.
Automation > Frequency converter less than 1 kV
MX2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

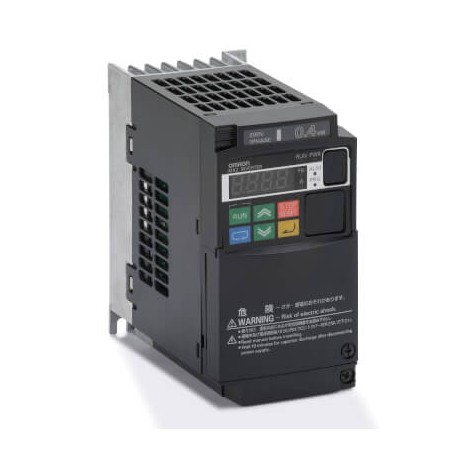

Omron 3G3MX2-AB004-E is an advanced frequency inverter engineered to control motor speed and torque with high precision in automated production lines. Variable frequency drives allow operators to adjust motor velocities seamlessly, improving process efficiency and reducing mechanical stress across conveyor systems and pumps.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Inverter control method: Open loop V/f, Open loop vector
- Drive supply voltage: 230 V single phase
- Max. motor output at constant torque (HD): 0.4 kW
- Max. motor output at variable torque (ND): 0.55 kW
- Degree of protection (IP): IP20
- Compatible motor type: Induction or asynchronous motor, Permanent magnet motor
- Regenerative solutions: As inverter option
- Communication port(s): MODBUS Slave, Serial RS-485, USB
- Height: 128 mm
- Width: 68 mm
- Depth: 123 mm
- Weight: 1100 g
- Mains frequency (EF006783): 50/60 Hz
- Degree of protection (IP) (EF005474): IP20
- Number of phases input (EF007117): 1
- Number of phases output (EF006998): 3
More info
▲Specifications
| Inverter control method | Open loop V/f, Open loop vector |
| Drive supply voltage | 230 V single phase |
| Max. motor output at constant torque (HD) | 0.4 kW |
| Max. motor output at variable torque (ND) | 0.55 kW |
| Built in EMC filter | |
| Degree of protection (IP) | IP20 |
| Finless type | |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Communication option(s) | CompoNet Slave, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, PROFIBUS DP Slave |
| Height | 128 mm |
| Width | 68 mm |
| Depth | 123 mm |
| Weight | 1100 g |
