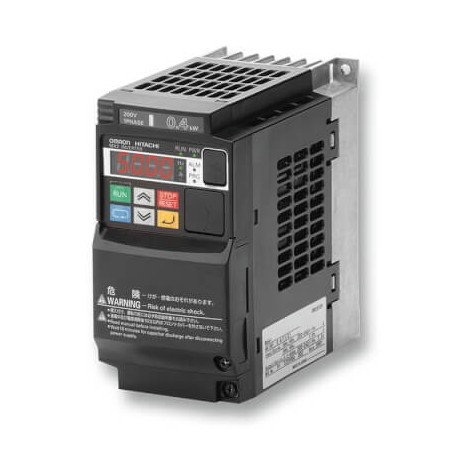

3G3MX2-A4030-E 3G3M9304M 3G3MX2A4030ECHN OMRON MX2 three-Phase, 380-480VAC, 3.0/4.0 KW, 7.2/8.8 A(HD/ND), ve..
3G3MX2-A4030-E
3G3MX2-A4030-E
3G3MX2A4030ECHN
OMRON
1 unit
Automation > Frequency converter less than 1 kV
MX2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron 3G3MX2-A4030-E is a three-phase inverter drive engineered to modulate motor speed and improve energy efficiency across diverse industrial applications. By dynamically altering voltage and frequency inputs, these components prevent mechanical strain and support closed-loop control systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains frequency: 50/60 Hz
- Degree of protection (IP): IP20
- Number of phases input: 3
- Number of phases output: 3
- With PC connection: Yes
- Supporting protocol for PROFIsafe: No
- Supporting protocol for PROFIBUS: Yes
- Supporting protocol for DeviceNet Safety: No
- Supporting protocol for TCP/IP: Yes
- Supporting protocol for BACnet: No
- Supporting protocol for other bus systems: Yes
- Supporting protocol for Foundation Fieldbus: No
- Application in domestic- and commercial area permitted: No
- 4-quadrant operation possible: Yes
- Supporting protocol for SafetyBUS p: No
- Supporting protocol for SERCOS: No
More info
▲Specifications
| Inverter control method | Open loop V/f, Open loop vector |
| Drive supply voltage | 400 V three phase |
| Max. motor output at constant torque (HD) | 3 kW |
| Max. motor output at variable torque (ND) | 4 kW |
| Built in EMC filter | |
| Degree of protection (IP) | IP20 |
| Finless type | |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Communication option(s) | CompoNet Slave, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, PROFIBUS DP Slave |
| Height | 128 mm |
| Width | 108 mm |
| Depth | 171 mm |
| Weight | 1900 g |
