3G3MX2-A4015-E 3G3M9300G 3G3MX2A4015ECHN OMRON MX2 three-Phase, 380-480VAC, 1.5/2.2 KW, 4.8/5.4 A(HD/ND), ve..
3G3MX2-A4015-E
3G3M9300G
3G3MX2A4015ECHN
OMRON
1 Pcs.
Automation > Frequency converter less than 1 kV
MX2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

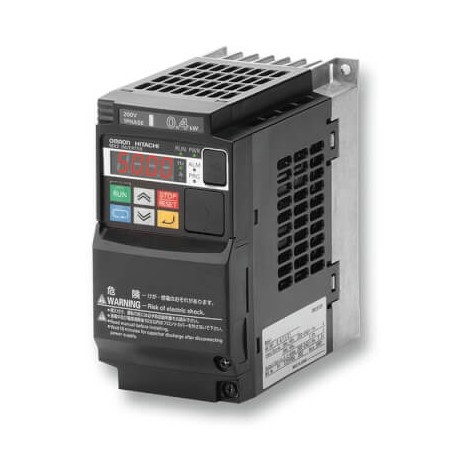

Omron 3G3MX2-A4015-E is a frequency converter utilized in manufacturing automation to provide exact speed regulation and motor protection. Inverters improve mechanical system longevity and reduce power waste across a broad spectrum of heavy-duty applications.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Inverter control method: Open loop V/f, Open loop vector
- Drive supply voltage: 400 V three phase
- Max. motor output at constant torque (HD): 1.5 kW
- Max. motor output at variable torque (ND): 2.2 kW
- Degree of protection (IP): IP20
- Compatible motor type: Induction or asynchronous motor, Permanent magnet motor
- Regenerative solutions: As inverter option
- Communication port(s): MODBUS Slave, Serial RS-485, USB
- Height: 128 mm
- Width: 108 mm
- Depth: 171 mm
- Weight: 1900 g
- Mains frequency (EF006783): 50/60 Hz
- Degree of protection (IP) (EF005474): IP20
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
More info
▲Specifications
| Inverter control method | Open loop V/f, Open loop vector |
| Drive supply voltage | 400 V three phase |
| Max. motor output at constant torque (HD) | 1.5 kW |
| Max. motor output at variable torque (ND) | 2.2 kW |
| Built in EMC filter | |
| Degree of protection (IP) | IP20 |
| Finless type | |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Communication option(s) | CompoNet Slave, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, PROFIBUS DP Slave |
| Height | 128 mm |
| Width | 108 mm |
| Depth | 171 mm |
| Weight | 1900 g |
