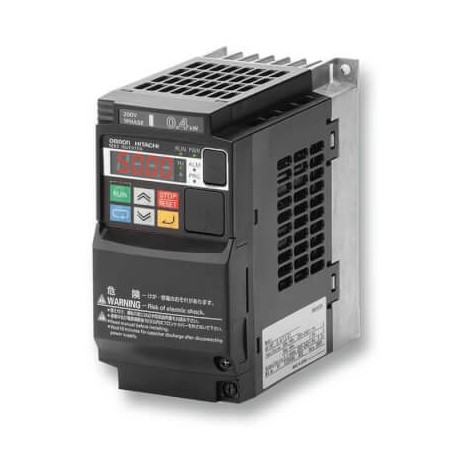

OMRON 3G3MX2-A2015-E 3G3MX2-A2015-E 3G3M9289B 3G3MX2A2015ECHN OMRON MX2 three-Phase, 200-240VAC, 1.5/2.2 KW, 8.0/9.6 A(HD/ND), ve.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3G3MX2-A2015-E 3G3M9289B 3G3MX2A2015ECHN OMRON MX2 three-Phase, 200-240VAC, 1.5/2.2 KW, 8.0/9.6 A(HD/ND), ve..

3G3MX2-A2015-E

3G3MX2-A2015-E

3G3MX2A2015ECHN

OMRON

1 unit

MX2 three-Phase, 200-240VAC, 1.5/2.2 KW, 8.0/9.6 A(HD/ND), vector MX inverter drive, 1.5/2.2 kW (HD/ND), 8.0/9.6 A (HD/ND), 200 VAC, 3~ input, sensorless vector, max. output freq. 580Hz

Automation > Frequency converter less than 1 kV
MX2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron 3G3MX2-A2015-E is an Omron MX2 three-phase inverter drive engineered to provide dependable speed control for standard industrial motors. Inverters like this are widely utilized across machine building and automated production sectors to optimize mechanical performance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Omron
  • Manufacturer part number: 3G3MX2-A2015-E
  • Catalogue title: 3G3MX2-A2015-E 3G3M9289B 3G3MX2A2015ECHN OMRON MX2 three-Phase, 200-240VAC, 1.5/2.2 KW, 8.0/9.6 A(HD/ND), ve..
  • Product description: Drive control methodOpen loop V/f, Open loop vectorDrive supply voltage230 V three phaseMax. motor output at constant torque1.5 kWMax. motor output at variable torque2.2 kWBuilt in EMC filterDegree of protection (IP)IP20
  • Manufacturer summary: MX2 three-Phase, 200-240VAC, 1.5/2.2 KW, 8.0/9.6 A(HD/ND), vector MX inverter drive, 1.5/2.2 kW (HD/ND), 8.0/9.6 A (HD/ND), 200 VAC, 3~ input, sensorless vector, max. output freq. 580Hz

More info

▲
Drive control methodOpen loop V/f, Open loop vectorDrive supply voltage230 V three phaseMax. motor output at constant torque1.5 kWMax. motor output at variable torque2.2 kWBuilt in EMC filterDegree of protection (IP)IP20Finless typeCompatible motor typeInduction or asynchronous motor, Permanent magnet motorRegenerative solutionsAs inverter optionCommunication port(s)MODBUS Slave, Serial RS-485, USBCommunication option(s)CompoNet Slave, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, PROFIBUS DP SlaveProduct Height (unpacked)128 mmProduct Width (unpacked)108 mmProduct Depth (unpacked)170.5 mmProduct Weight (unpacked)1600 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
