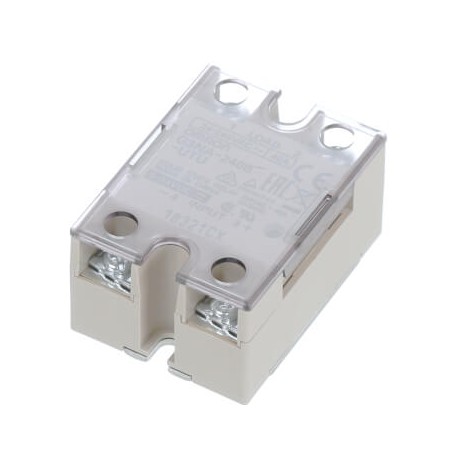

OMRON G3NA-240B-UTU 5-24VDC G3NA-240B-UTU 5-24VDC G3NA7028G G3NA240BUTUDC524BYOMZ OMRON 40A 24-240vac Indic. photocoupler View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3NA-240B-UTU 5-24VDC G3NA7028G G3NA240BUTUDC524BYOMZ OMRON 40A 24-240vac Indic. photocoupler

G3NA-240B-UTU 5-24VDC

G3NA7028G

G3NA240BUTUDC524BYOMZ

OMRON

10 Pcs.

40A 24-240vac Indic. photocoupler Solid state relay, surface mounting, zero crossing, 1-pole, 40 A, 24 to 240 VAC

Automation > Solid state relay
G3N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron G3NA-240B-UTU 5-24VDC is a single-phase solid state relay used for fast, reliable electrical load switching in industrial environments. Solid state relays provide contactless switching for heating elements, motors, and lighting systems, eliminating mechanical wear and reducing electrical noise. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage): AC
  • Voltage type for actuating: AC
  • Switching at zero-crossing: Yes
  • Modular version: No
  • Rated operation current Ie at AC-1: 40 A
  • Number of phases: 1
  • Rated operation current Ie at AC-3: 40 A
  • Rated control supply voltage DC: 5 V
  • Operating voltage AC 50 Hz: 24 V
  • Operating voltage AC 60 Hz: 24 V

More info

▲
ApplicationON/OFF controlNumber of phases1Mounting methodScrewTerminal typeScrewLED indicatorRated operational voltage, AC24-240 VOperating voltage range, AC19-264 VRated operation current Ie at AC-140 AProduct Height (unpacked)58 mmProduct Width (unpacked)43 mmProduct Depth (unpacked)27 mmSupply voltage DC5-24 VControl current max.7 mAMust operate voltage max.4 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CSwitching at zero-crossing
