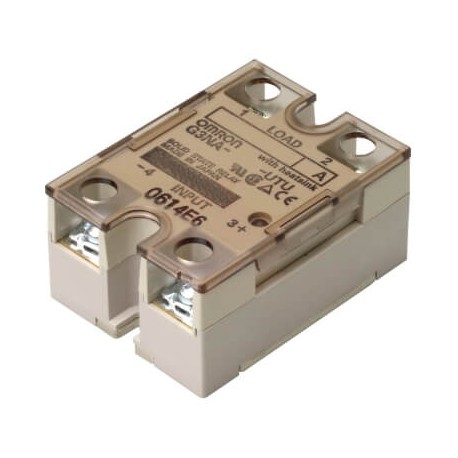

OMRON G3NA-210B-UTU 5-24VDC G3NA-210B-UTU 5-24VDC G3NA7019H G3NA210BUTUDC524BYOMZ OMRON 10A 24-240vac Indic. Photocoupler View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3NA-210B-UTU 5-24VDC G3NA7019H G3NA210BUTUDC524BYOMZ OMRON 10A 24-240vac Indic. Photocoupler

G3NA-210B-UTU 5-24VDC

G3NA7019H

G3NA210BUTUDC524BYOMZ

OMRON

10 Pcs.

10A 24-240vac Indic. Photocoupler Solid state relay, surface mounting, zero crossing, 1-pole, 10 A, 24 to 240 VAC

Automation > Solid state relay
G3N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron G3NA-210B-UTU 5-24VDC solid state relay utilizes photocoupler technology to isolate control signals from high-voltage AC circuits in industrial equipment. Engineers choose these reliable switching components to prevent electrical noise interference and extend the service life of automated systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): AC
  • Voltage type for actuating (EF008242): AC
  • Switching at zero-crossing (EF011956): Yes
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1 (EF006069): 10 A
  • Number of phases (EF000351): 1
  • Rated operation current Ie at AC-3 (EF006070): 10 A
  • Rated control supply voltage DC (EF003980): 5 V
  • Operating voltage AC 50 Hz (EF008206): 24 V
  • Operating voltage AC 60 Hz (EF008207): 24 V

More info

▲
ApplicationON/OFF controlNumber of phases1Mounting methodScrewTerminal typeScrewLED indicatorRated operational voltage, AC24-240 VOperating voltage range, AC19-264 VRated operation current Ie at AC-110 AProduct Height (unpacked)58 mmProduct Width (unpacked)43 mmProduct Depth (unpacked)27 mmSupply voltage DC5-24 VControl current max.7 mAMust operate voltage max.4 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CSwitching at zero-crossing

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
