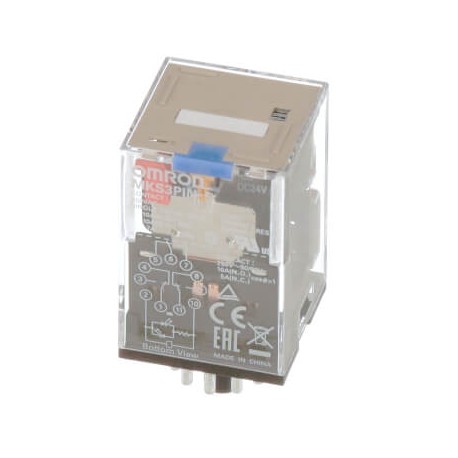

OMRON MKS3PIN-D-5 24VDC MKS3PIN-D-5 24VDC MKSN8741A MKS3PIND5DC24BYOMZ OMRON 3PDT 10A Indic. mechanical LED Push-button-Diode test View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKS3PIN-D-5 24VDC MKSN8741A MKS3PIND5DC24BYOMZ OMRON 3PDT 10A Indic. mechanical LED Push-button-Diode test

MKS3PIN-D-5 24VDC

MKSN8741A

MKS3PIND5DC24BYOMZ

OMRON

20 Pcs.

3PDT 10A Indic. mechanical LED Push-button-Diode test Relay, plug-in, 11-pin, 3PDT, 10 A, mech & LED indicator, test button, coil suppression

Automation > Switching relay
MK-I/-S

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron MKS3PIN-D-5 24VDC 3PDT power relay serves as a robust switching device deployed in heavy industrial control panels to command high-capacity motors, heaters, and lighting banks. Its multi-contact design facilitates comprehensive interlock and feedback control loops. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Drive, polarization (EF003355): Polarized
  • Voltage type for actuating (EF008242): DC
  • Drive, switching attitude (EF003356): Mono stable
  • With detachable clamps (EF003340): No
  • Complete with socket (EF003359): No
  • With LED indication (EF005950): Yes
  • With forced-guided contacts (EF003357): No
  • Number of contacts as change-over contact (EF008257): 3
  • Number of contacts as normally open contact (EF008256): 0
  • Width (EF000008): 34.5 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Height (EF000040): 34.5 mm
  • Depth (EF000049): 52.5 mm
  • Rated control supply voltage DC (EF003980): 19.2 V

More info

▲
Mounting methodWith plug-in socketUsageGeneral purposePoles3Rated carry current10 ACoil voltage24 VOperation voltageDCContact materialAgSnInContact description3PDTFeaturesDiode, LED, Test button, Transparent case, With mechanical indicatorTerminal typePlug-in

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
