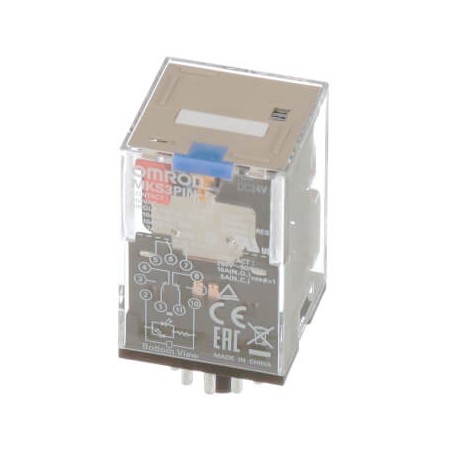

OMRON MKS3PIN-5 24VDC MKS3PIN-5 24VDC MKSN8566D MKS3PIN5DC24BYOMZ OMRON 3PDT 10A Indic. mechanical LED Push button-test View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKS3PIN-5 24VDC MKSN8566D MKS3PIN5DC24BYOMZ OMRON 3PDT 10A Indic. mechanical LED Push button-test

MKS3PIN-5 24VDC

MKSN8566D

MKS3PIN5DC24BYOMZ

OMRON

20 Pcs.

3PDT 10A Indic. mechanical LED Push button-test Relay, plug-in, 11-pin, 3PDT, 10 A, mech & LED indicator, test button

Automation > Switching relay
MK-I/-S

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Industrial control applications depend on plug-in power relays to execute reliable switching operations, manage electrical interlocks, and isolate sensitive control equipment from heavy load surges.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Drive, polarization (EF003355): Polarized
  • Voltage type for actuating (EF008242): DC
  • Drive, switching attitude (EF003356): Mono stable
  • With detachable clamps (EF003340): No
  • Complete with socket (EF003359): No
  • With LED indication (EF005950): Yes
  • With forced-guided contacts (EF003357): No
  • Number of contacts as change-over contact (EF008257): 3
  • Number of contacts as normally open contact (EF008256): 0
  • Width (EF000008): 34.5 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Height (EF000040): 34.5 mm
  • Depth (EF000049): 52.5 mm
  • Rated control supply voltage DC (EF003980): 19.2 V

More info

▲
Mounting methodWith plug-in socketUsageGeneral purposePoles3Rated carry current10 ACoil voltage24 VOperation voltageDCContact materialAgSnInContact description3PDTFeaturesLED, Test button, Transparent case, With mechanical indicatorTerminal typePlug-in

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
