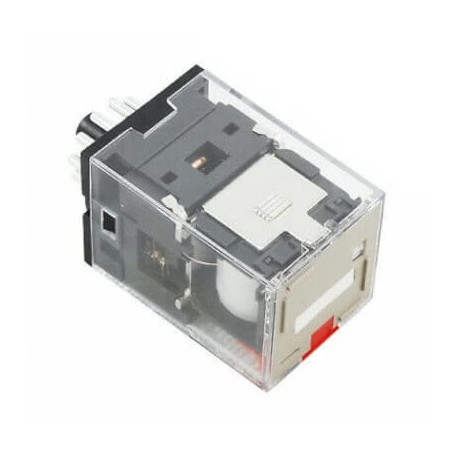

OMRON MKS3PIN-5 230VAC MKS3PIN-5 230VAC MKSN8562A MKS3PIN5AC230BYOMZ OMRON 3PDT 10A Indic. mechanical LED Push button-test View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKS3PIN-5 230VAC MKSN8562A MKS3PIN5AC230BYOMZ OMRON 3PDT 10A Indic. mechanical LED Push button-test

MKS3PIN-5 230VAC

MKSN8562A

MKS3PIN5AC230BYOMZ

OMRON

20 Pcs.

3PDT 10A Indic. mechanical LED Push button-test Relay, plug-in, 11-pin, 3PDT, 10 A, mech & LED indicator, test button

Automation > Switching relay
MK-I/-S

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An MKS3PIN-5 230VAC MKSN8562A MKS3PIN5AC230BYOMZ OMRON plug-in power relay is widely deployed in industrial control panels for executing heavy-duty switching operations and providing logical interlocking between machine subsystems. These robust components handle demanding electrical loads with ease. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch contact (EF003358): Single contact
  • Drive, polarization (EF003355): Polarized
  • Voltage type for actuating (EF008242): AC
  • Type of electric connection (EF003961): Plug-in connection
  • Drive, switching attitude (EF003356): Mono stable
  • With detachable clamps (EF003340): No
  • Complete with socket (EF003359): No
  • With LED indication (EF005950): Yes
  • With forced-guided contacts (EF003357): No
  • Number of contacts as change-over contact (EF008257): 3
  • Number of contacts as normally open contact (EF008256): 0
  • Width (EF000008): 34.5 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Height (EF000040): 52.5 mm
  • Depth (EF000049): 34.5 mm
  • Rated control supply voltage AC 60 Hz (EF003979): 184 V

More info

▲
Mounting methodWith plug-in socketUsageGeneral purposePoles3Rated carry current10 ACoil voltage230 VOperation voltageACContact materialAgSnInContact description3PDTFeaturesLED, Test button, Transparent case, With mechanical indicatorTerminal typePlug-in

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
