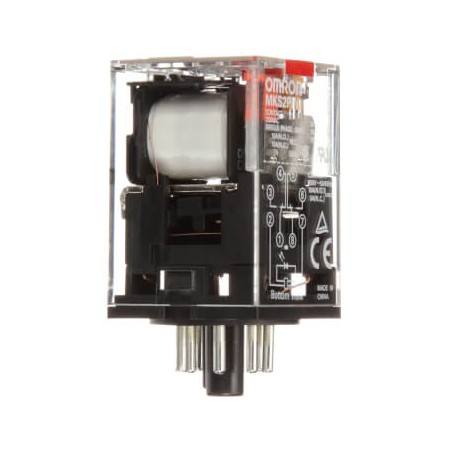

OMRON MKS2PIN 230VAC MKS2PIN 230VAC MKSN8494C MKS2PINAC230BYOMZ OMRON DPDT 10A Indic. mechanical LED Push button-test View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKS2PIN 230VAC MKSN8494C MKS2PINAC230BYOMZ OMRON DPDT 10A Indic. mechanical LED Push button-test

MKS2PIN 230VAC

MKSN8494C

MKS2PINAC230BYOMZ

OMRON

20 Pcs.

DPDT 10A Indic. mechanical LED Push button-test Relay, plug-in, 8-pin, DPDT, 10 A, mech & LED indicator, test button

Automation > Switching relay
MK-I/-S

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a crucial interlock in electrical distribution systems, the Omron MKS2PIN 230VAC MKSN8494C MKS2PINAC230BYOMZ OMRON DPDT 10A Indic. mechanical LED Push button-test routes control signals and safely switches moderate electrical loads. Industrial control panels rely on these devices to repeat signals and protect sensitive automation components from direct power surges.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Drive, polarization (EF003355): Polarized
  • Voltage type for actuating (EF008242): AC
  • Drive, switching attitude (EF003356): Mono stable
  • With detachable clamps (EF003340): No
  • Complete with socket (EF003359): No
  • With LED indication (EF005950): Yes
  • With forced-guided contacts (EF003357): No
  • Number of contacts as change-over contact (EF008257): 2
  • Number of contacts as normally open contact (EF008256): 0
  • Width (EF000008): 34.5 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Height (EF000040): 34.5 mm
  • Depth (EF000049): 52.5 mm
  • Rated control supply voltage AC 60 Hz (EF003979): 184 V
  • Rated control supply voltage AC 50 Hz (EF003978): 184 V

More info

▲
Mounting methodWith plug-in socketUsageGeneral purposePoles2Rated carry current10 ACoil voltage230 VOperation voltageACContact materialAgSnInContact descriptionDPDTFeaturesLED, Test button, Transparent case, With mechanical indicatorTerminal typePlug-in
