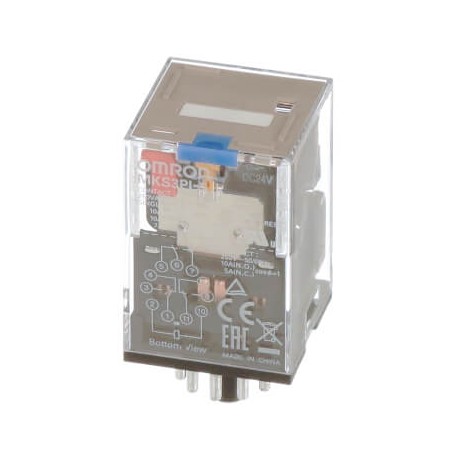

OMRON MKS3PI-5 12VDC MKS3PI-5 12VDC MKSN8480C MKS3PI5DC12BYOMZ OMRON 3PDT 10A Indic. mechanical Push button-test View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKS3PI-5 12VDC MKSN8480C MKS3PI5DC12BYOMZ OMRON 3PDT 10A Indic. mechanical Push button-test

MKS3PI-5 12VDC

MKSN8480C

MKS3PI5DC12BYOMZ

OMRON

20 Pcs.

3PDT 10A Indic. mechanical Push button-test Relay, plug-in, 11-pin, 3PDT, 10 A, mech indicator, test button

Automation > Switching relay
MK-I/-S

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The MKS3PI-5 12VDC MKSN8480C MKS3PI5DC12BYOMZ OMRON 3PDT 10A Indic. mechanical Push button-test is a general-purpose plug-in relay used for controlling multiple independent circuits simultaneously within industrial control panels. Multi-pole relays are widely deployed in automation systems to multiply contact outputs and facilitate complex interlock logic. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Drive, polarization (EF003355): Polarized
  • Voltage type for actuating (EF008242): DC
  • Drive, switching attitude (EF003356): Mono stable
  • With detachable clamps (EF003340): No
  • Complete with socket (EF003359): No
  • With LED indication (EF005950): No
  • With forced-guided contacts (EF003357): No
  • Number of contacts as change-over contact (EF008257): 3
  • Number of contacts as normally open contact (EF008256): 0
  • Width (EF000008): 34.5 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Height (EF000040): 34.5 mm
  • Depth (EF000049): 52.5 mm
  • Nominal current (EF000001): 5 A
  • Rated control supply voltage DC (EF003980): 9.6 V

More info

▲
Mounting methodWith plug-in socketUsageGeneral purposePoles3Rated carry current10 ACoil voltage12 VOperation voltageDCContact materialAgSnInContact description3PDTFeaturesTest button, Transparent case, With mechanical indicatorTerminal typePlug-in

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
