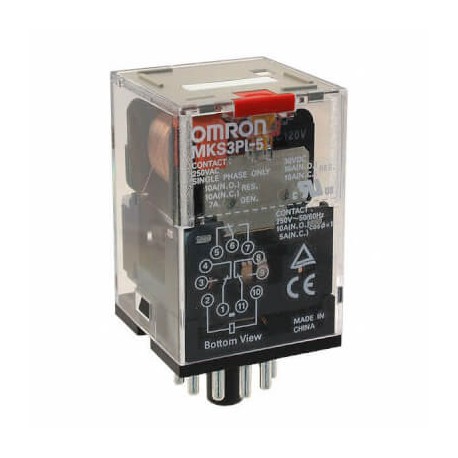

OMRON MKS3PI-5 230VAC MKS3PI-5 230VAC MKSN8477C MKS3PI5AC230BYOMZ OMRON 3PDT 10A Indic. mechanical Push button-test View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKS3PI-5 230VAC MKSN8477C MKS3PI5AC230BYOMZ OMRON 3PDT 10A Indic. mechanical Push button-test

MKS3PI-5 230VAC

MKSN8477C

MKS3PI5AC230BYOMZ

OMRON

20 Pcs.

3PDT 10A Indic. mechanical Push button-test Relay, plug-in, 11-pin, 3PDT, 10 A, mech indicator, test button

Automation > Switching relay
MK-I/-S

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Control logic routing and heavy switching tasks are managed by the MKS3PI-5 230VAC MKSN8477C MKS3PI5AC230BYOMZ OMRON 3PDT 10A Indic. mechanical Push button-test, an electromechanical switching relay. These multi-pole relays are standard in automated production lines to facilitate interlocking control circuits and power distribution.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Drive, polarization: Polarized
  • Voltage type for actuating: AC
  • Drive, switching attitude: Mono stable
  • With detachable clamps: No
  • Complete with socket: No
  • With LED indication: No
  • With forced-guided contacts: No
  • Number of contacts as change-over contact: 3
  • Number of contacts as normally open contact: 0
  • Width: 34.5 mm
  • Number of contacts as normally closed contact: 0
  • Height: 34.5 mm
  • Depth: 52.5 mm
  • Nominal current: 5 A
  • Rated control supply voltage AC 60 Hz: 184 V
  • Rated control supply voltage AC 50 Hz: 184 V

More info

▲
Mounting methodWith plug-in socketUsageGeneral purposePoles3Rated carry current10 ACoil voltage230 VOperation voltageACContact materialAgSnInContact description3PDTFeaturesTest button, Transparent case, With mechanical indicatorTerminal typePlug-in
