View larger

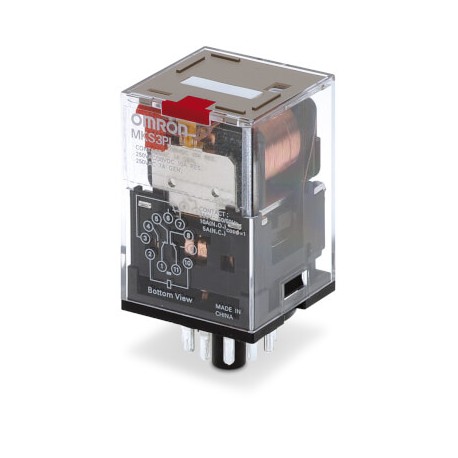

MKS3PI-5 120VAC MKSN8474R MKS3PI5AC120BYOMZ OMRON 3PDT 10A Indic. mechanical Push button-test
MKS3PI-5 120VAC
MKSN8474R
MKS3PI5AC120BYOMZ
OMRON
20 Pcs.
Automation > Switching relay
MK-I/-S
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron 3PDT 10A Indic. mechanical Push button-test bearing part number MKS3PI-5 120VAC is a heavy-duty electromechanical switching device built for demanding industrial control systems. Relays of this class are typically installed to handle higher current loads while offering manual test features for efficient commissioning and troubleshooting. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- DPDT (2-pole): yes
- yes: MKS2PIN
- 3PDT (3-pole): no
- yes: MKS3PI-D-5
- yes: no
- yes: MKS3PIN-D-5
- MKS2: PF083A-E
- MKS3: PF113A-E
- AC: 6 V, 12 V, 24 V, 100 V, 110 V, 120 V, 200 V, 220 V, 230 V, 240 V
- 2.7 VA (50 Hz) DC: 6 V, 12 V, 24 V, 48 V, 100 V, 110 V
- Contact material: AgSnIn
- Rated load: NO: 10 A at 250 VAC NC: 5 A at 30 VDC
- Rated carry current: 10 A
- Max. switching voltage: 250 VAC, 250 VDC
- Max. switching current: 10 A
- Max. switching power: 2,500 VA/ 300 W
More info
▲Exceptionally reliable general-purpose relay
The MK(S) series has proven to be exceptionally reliable since its introduction almost 50 years ago. In order to provide the same easy testing as our other relay families, the MK-S is equipped with a lockable test button offering the same function/operation as the MY(S) and G2R(S) families.
- 8-pin DPDT and 11-pin 3PDT contact types
- Switching current up to 10 A
- Lockable test button for easy testing
- Temperature rating from -40C up to 60C
