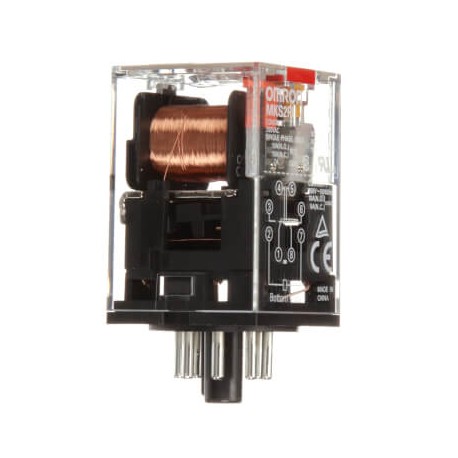

OMRON MKS2PI 230VAC MKS2PI 230VAC MKSN8409R MKS2PIAC230BYOMZ OMRON DPDT 10A Indic. mechanical Push button-test View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKS2PI 230VAC MKSN8409R MKS2PIAC230BYOMZ OMRON DPDT 10A Indic. mechanical Push button-test

MKS2PI 230VAC

MKSN8409R

MKS2PIAC230BYOMZ

OMRON

20 Pcs.

DPDT 10A Indic. mechanical Push button-test Relay, plug-in, 8-pin, DPDT, 10 A, mech indicator, test button

Automation > Switching relay
MK-I/-S

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Functioning as an electromechanical switch interface, the Omron MKS2PI 230VAC MKSN8409R MKS2PIAC230BYOMZ OMRON DPDT 10A Indic. mechanical Push button-test routes electrical signals between control systems and field equipment. These standard control components ensure isolation between divergent circuit voltages while allowing manual testing capabilities during maintenance.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Drive, polarization (EF003355): Polarized
  • Voltage type for actuating (EF008242): AC
  • Drive, switching attitude (EF003356): Mono stable
  • With detachable clamps (EF003340): No
  • Complete with socket (EF003359): No
  • With LED indication (EF005950): No
  • With forced-guided contacts (EF003357): No
  • Number of contacts as change-over contact (EF008257): 2
  • Number of contacts as normally open contact (EF008256): 0
  • Width (EF000008): 34.5 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Height (EF000040): 34.5 mm
  • Depth (EF000049): 52.5 mm
  • Nominal current (EF000001): 5 A
  • Rated control supply voltage AC 60 Hz (EF003979): 184 V
  • Rated control supply voltage AC 50 Hz (EF003978): 184 V

More info

▲
Mounting methodWith plug-in socketUsageGeneral purposePoles2Rated carry current10 ACoil voltage230 VOperation voltageACContact materialAgSnInContact descriptionDPDTFeaturesTest button, Transparent case, With mechanical indicatorTerminal typePlug-in
