View larger
Images are for illustrative purposes only. Please refer to data sheet for details

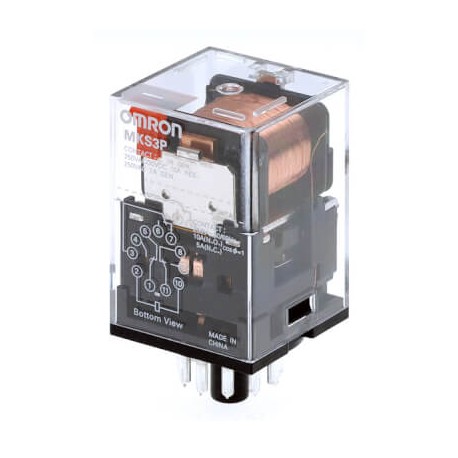

MKS3P-5 230VAC MKSN8077H MKS3P5AC230BYOMZ OMRON 3PDT 10A Indic. mechanical LED Push button-test
MKS3P-5 230VAC
MKSN8077H
MKS3P5AC230BYOMZ
OMRON
20 Pcs.
3PDT 10A Indic. mechanical LED Push button-test
Relay, plug-in, 11-pin, 3PDT, 10 A, mech indicator
Automation > Switching relay
MK-I/-S
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Mounting methodWith plug-in socketUsageGeneral purposePoles3Rated carry current10 ACoil voltage230 VOperation voltageACContact materialAgSnInContact description3PDTFeaturesTransparent case, With mechanical indicatorTerminal typePlug-in
| Feature Name | Feature Value |
|---|---|
| Type of switch contact (EF003358) | Single contact |
| Degree of protection (IP) (EF005474) | Other |
| Drive, polarization (EF003355) | Polarized |
| Voltage type for actuating (EF008242) | AC |
| Type of electric connection (EF003961) | Plug-in connection |
| Drive, switching attitude (EF003356) | Mono stable |
| With detachable clamps (EF003340) | No |
| Complete with socket (EF003359) | No |
| With LED indication (EF005950) | No |
| With forced-guided contacts (EF003357) | No |
| Number of contacts as change-over contact (EF008257) | 3 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Width (EF000008) | 34.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Height (EF000040) | 52.5 mm |
| Depth (EF000049) | 34.5 mm |
| Nominal current (EF000001) | 5 A |
| Rated control supply voltage AC 60 Hz (EF003979) | 184 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 184 V |
