View larger
Images are for illustrative purposes only. Please refer to data sheet for details

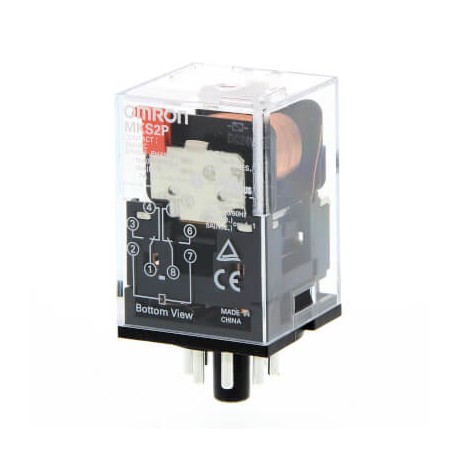

MKS2P 110VAC MKSN8005M 376281 OMRON DPDT 10A Plug. Indic. Mechanic
MKS2P 110VAC
MKSN8005M
MKS2PAC110BYOMZ
OMRON
20 Pcs.
DPDT 10A Enchuf. Indic. Mechanical
Relay, plug-in, 8-pin, DPDT, 10 A, mech indicator
Automation > Switching relay
MK-I/-S
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Mounting method | With plug-in socket |
| Usage | General purpose |
| Poles | 2 |
| Rated carry current | 10 A |
| Coil voltage | 110 V |
| Operation voltage | AC |
| Contact material | AgSnIn |
| Contact description | DPDT |
| Features | Transparent case, With mechanical indicator |
| Terminal type | Plug-in |
| Feature Name | Feature Value |
|---|---|
| Type of switch contact (EF003358) | Other |
| Degree of protection (IP) (EF005474) | Other |
| Drive, polarization (EF003355) | Polarized |
| Voltage type for actuating (EF008242) | AC |
| Type of electric connection (EF003961) | Other |
| Drive, switching attitude (EF003356) | Mono stable |
| With detachable clamps (EF003340) | No |
| Complete with socket (EF003359) | No |
| With LED indication (EF005950) | No |
| With forced-guided contacts (EF003357) | No |
| Number of contacts as change-over contact (EF008257) | 2 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Width (EF000008) | 34.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Height (EF000040) | 34.5 mm |
| Depth (EF000049) | 52.5 mm |
| Nominal current (EF000001) | 5 A |
| Rated control supply voltage AC 60 Hz (EF003979) | 88 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 88 V |
