View larger
Images are for illustrative purposes only. Please refer to data sheet for details
G3PE-225B 12-24VDC G3PE4002B G3PE225BDC1224BYOMZ OMRON 25A 100-240vac single Phase C DIN disp. Func. Step-by..
G3PE-225B 12-24VDC
G3PE4002B
G3PE225BDC1224BYOMZ
OMRON
10 Pcs.
25A 100-240vac single Phase C DIN disp. Func. Step-by-Zero

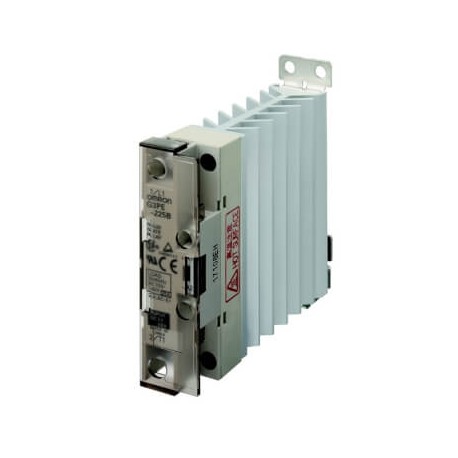

Solid state relay, 1 phase, 25A 100-240 VAC, with heat sink, DIN rail mount
Automation > Solid state relay
G3PB
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
ApplicationON/OFF controlNumber of phases1Number of poles1Mounting methodDIN rail/screwTerminal typeScrewComplete with socketLED indicatorRated operational voltage, AC100-240 VOperating voltage range, AC75-264 VRated operation current Ie at AC-125 APermissible I²t value260 A²sApplicable heater capacity (AC1: resistive load)5 kWProduct Height (unpacked)100 mmProduct Width (unpacked)22.5 mmProduct Depth (unpacked)100 mmSupply voltage DC12-24 VControl current max.10 mAMust operate voltage max.9.6 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhototriacSwitching at zero-crossingCommunication port(s)None
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | AC |
| Voltage type for actuating (EF008242) | AC |
| Switching at zero-crossing (EF011956) | Yes |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-1 (EF006069) | 25 A |
| Number of phases (EF000351) | 1 |
| Rated operation current Ie at AC-3 (EF006070) | 25 A |
| Rated control supply voltage DC (EF003980) | 12 V |
| Operating voltage AC 50 Hz (EF008206) | 100 V |
| Operating voltage AC 60 Hz (EF008207) | 100 V |
