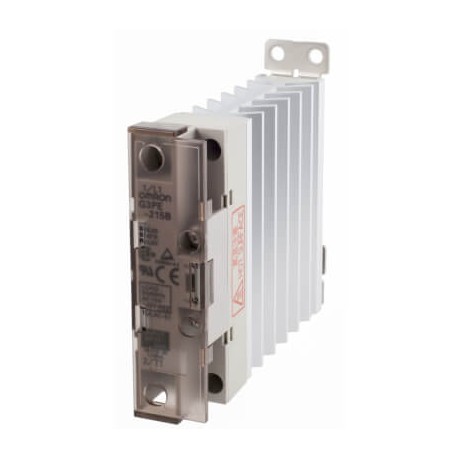

OMRON G3PE-215B 12-24VDC G3PE-215B 12-24VDC G3PE4001D G3PE215BDC1224BYOMZ OMRON 15A 100-240vac single Phase C DIN disp. Func. Step-by.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3PE-215B 12-24VDC G3PE4001D G3PE215BDC1224BYOMZ OMRON 15A 100-240vac single Phase C DIN disp. Func. Step-by..

G3PE-215B 12-24VDC

G3PE4001D

G3PE215BDC1224BYOMZ

OMRON

10 Pcs.

15A 100-240vac single Phase C DIN disp. Func. Step-by-Zero Solid state relay, 1 phase, 15A 100-240 VAC, with heat sink, DIN rail mount

Automation > Solid state relay
G3PB

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron part number G3PE-215B 12-24VDC G3PE4001D G3PE215BDC1224BYOMZ OMRON 15A 100-240vac single Phase C DIN disp. Func. Step-by.. functions as a solid-state relay designed for reliable electrical isolation and load switching. Industrial automation systems utilize this hardware to control resistive and inductive loads with high frequency and precision. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): AC
  • Voltage type for actuating (EF008242): AC
  • Switching at zero-crossing (EF011956): Yes
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1 (EF006069): 15 A
  • Number of phases (EF000351): 1
  • Rated operation current Ie at AC-3 (EF006070): 15 A
  • Rated control supply voltage DC (EF003980): 12 V
  • Operating voltage AC 50 Hz (EF008206): 100 V
  • Operating voltage AC 60 Hz (EF008207): 100 V

More info

▲
ApplicationON/OFF controlNumber of phases1Number of poles1Mounting methodDIN rail/screwTerminal typeScrewComplete with socketLED indicatorRated operational voltage, AC100-240 VOperating voltage range, AC75-264 VRated operation current Ie at AC-115 APermissible I²t value121 A²sApplicable heater capacity (AC1: resistive load)3 kWProduct Height (unpacked)100 mmProduct Width (unpacked)22.5 mmProduct Depth (unpacked)100 mmSupply voltage DC12-24 VControl current max.10 mAMust operate voltage max.9.6 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhototriacSwitching at zero-crossingCommunication port(s)None
