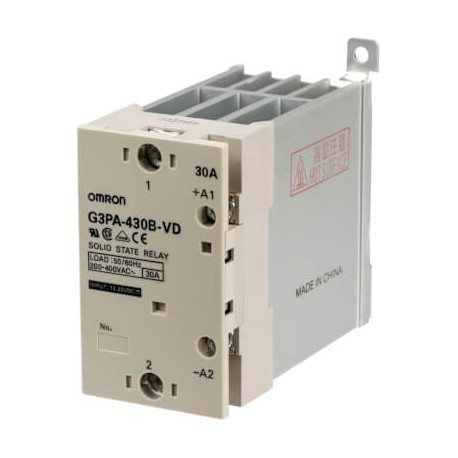

OMRON G3PA-430B-VD 12-24VDC G3PA-430B-VD 12-24VDC G3PA4005R G3PA430BVDDC1224BYOMZ OMRON 30A 180-400Vac DIN Rail Indicator View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3PA-430B-VD 12-24VDC G3PA4005R G3PA430BVDDC1224BYOMZ OMRON 30A 180-400Vac DIN Rail Indicator

G3PA-430B-VD 12-24VDC

G3PA4005R

G3PA430BVDDC1224BYOMZ

OMRON

10 Pcs.

30A 180-400Vac DIN Rail Indicator Solid state relay, DIN rail/surface mounting, 1-pole, 30 A, 440 VAC max

Automation > Solid state relay
G3PA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

G3PA-430B-VD 12-24VDC G3PA4005R G3PA430BVDDC1224BYOMZ OMRON 30A 180-400Vac DIN Rail Indicator from Omron operates as a solid state relay optimized for efficient thermal management and high-density panel installations. Industrial system builders implement these units to manage resistive loads and heating controls where compact sizing and rapid cycle times are essential.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): DC
  • Voltage type for actuating (EF008242): DC
  • Switching at zero-crossing (EF011956): Yes
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1 (EF006069): 30 A
  • Number of phases (EF000351): 1
  • Rated operation current Ie at AC-3 (EF006070): 30 A
  • Operating voltage DC (EF008208): 9.6 V
  • Rated control supply voltage DC (EF003980): 12 V

More info

▲
ApplicationON/OFF controlNumber of phases1Number of poles1Mounting methodDIN railTerminal typeScrewLED indicatorRated operational voltage, AC181-400 VOperating voltage range, AC180-440 VRated operation current Ie at AC-130 ARated load current Close mounting24 APermissible I²t value1800 A²sProduct Height (unpacked)100 mmProduct Width (unpacked)47 mmProduct Depth (unpacked)100 mmSupply voltage DC12-24 VControl current max.7 mAMust operate voltage max.9.2 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhototriacSwitching at zero-crossing
