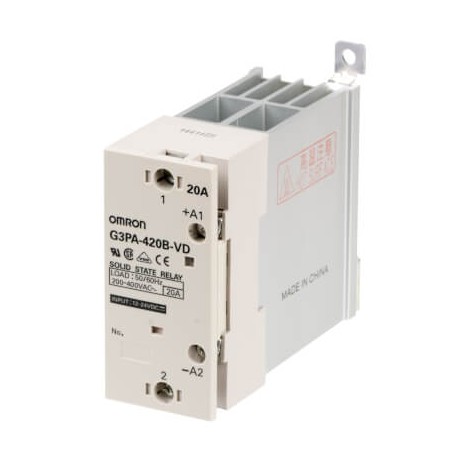

OMRON G3PA-420B-VD 12-24VDC G3PA-420B-VD 12-24VDC G3PA4004M G3PA420BVDDC1224BYOMZ OMRON 20A 180-400vac DIN Rail Indicator View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3PA-420B-VD 12-24VDC G3PA4004M G3PA420BVDDC1224BYOMZ OMRON 20A 180-400vac DIN Rail Indicator

G3PA-420B-VD 12-24VDC

G3PA4004M

G3PA420BVDDC1224BYOMZ

OMRON

10 Pcs.

20A 180-400vac DIN Rail Indicator Solid state relay, DIN rail/surface mounting, 1-pole, 20 A, 440 VAC max

Automation > Solid state relay
G3PA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron G3PA-420B-VD 12-24VDC is a compact DIN-rail mount solid state relay built for precise heater control and high-frequency switching operations in manufacturing plants.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): DC
  • Voltage type for actuating (EF008242): DC
  • Switching at zero-crossing (EF011956): Yes
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1 (EF006069): 20 A
  • Number of phases (EF000351): 1
  • Rated operation current Ie at AC-3 (EF006070): 20 A
  • Operating voltage DC (EF008208): 9.6 V
  • Rated control supply voltage DC (EF003980): 12 V

More info

▲
ApplicationON/OFF controlNumber of phases1Number of poles1Mounting methodDIN railTerminal typeScrewLED indicatorRated operational voltage, AC180-400 VOperating voltage range, AC180-440 VRated operation current Ie at AC-120 ARated load current Close mounting16 APermissible I²t value260 A²sProduct Height (unpacked)100 mmProduct Width (unpacked)37 mmProduct Depth (unpacked)100 mmSupply voltage DC12-24 VControl current max.7 mAMust operate voltage max.9.2 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhototriacSwitching at zero-crossing
