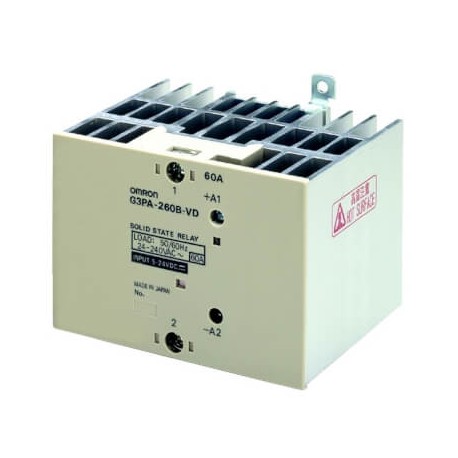

OMRON G3PA-260B-VD 5-24VDC G3PA-260B-VD 5-24VDC G3PA4003B G3PA260BVDDC524BYOMZ OMRON 60A 24-240VAC DIN Rail Indicator View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3PA-260B-VD 5-24VDC G3PA4003B G3PA260BVDDC524BYOMZ OMRON 60A 24-240VAC DIN Rail Indicator

G3PA-260B-VD 5-24VDC

G3PA4003B

G3PA260BVDDC524BYOMZ

OMRON

1 Pcs.

60A 24-240VAC DIN Rail Indicator Solid state relay, DIN rail/surface mounting, 1-pole, 60 A, 264 VAC max

Automation > Solid state relay
G3PA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a single-phase solid state relay, the Omron G3PA-260B-VD 5-24VDC provides reliable contactless switching for industrial heating, lighting, and motor loads. Solid state relays serve in automation systems to execute frequent switching cycles without mechanical wear, ensuring high-speed operation and extended service longevity in demanding electrical panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): DC
  • Voltage type for actuating (EF008242): DC
  • Switching at zero-crossing (EF011956): Yes
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1 (EF006069): 60 A
  • Number of phases (EF000351): 1
  • Rated operation current Ie at AC-3 (EF006070): 60 A
  • Operating voltage DC (EF008208): 4 V
  • Rated control supply voltage DC (EF003980): 5 V

More info

▲
ApplicationON/OFF controlNumber of phases1Number of poles1Mounting methodDIN railTerminal typeScrewLED indicatorRated operational voltage, AC24-240 VOperating voltage range, AC19-264 VRated operation current Ie at AC-160 ARated load current Close mounting48 APermissible I²t value1260 A²sProduct Height (unpacked)100 mmProduct Width (unpacked)110 mmProduct Depth (unpacked)100 mmSupply voltage DC5-24 VControl current max.7 mAMust operate voltage max.4 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhototriacSwitching at zero-crossing
