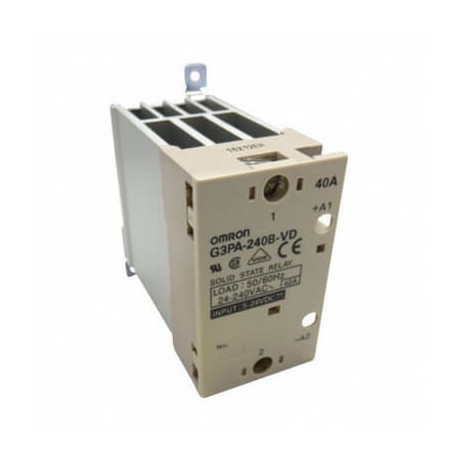

OMRON G3PA-240B-VD 5-24VDC G3PA-240B-VD 5-24VDC G3PA4002D G3PA240BVDDC524BYOMZ OMRON 40A 24-240vac DIN Rail Indicator View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3PA-240B-VD 5-24VDC G3PA4002D G3PA240BVDDC524BYOMZ OMRON 40A 24-240vac DIN Rail Indicator

G3PA-240B-VD 5-24VDC

G3PA4002D

G3PA240BVDDC524BYOMZ

OMRON

10 Pcs.

40A 24-240vac DIN Rail Indicator Solid state relay, DIN rail/surface mounting, 1-pole, 40 A, 264 VAC max

Automation > Solid state relay
G3PA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Configured for single-phase control, the Omron G3PA-240B-VD 5-24VDC solid state relay provides reliable non-contact power switching for heating and motor loads within control panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): DC
  • Voltage type for actuating (EF008242): DC
  • Switching at zero-crossing (EF011956): Yes
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1 (EF006069): 40 A
  • Number of phases (EF000351): 1
  • Rated operation current Ie at AC-3 (EF006070): 40 A
  • Operating voltage DC (EF008208): 4 V
  • Rated control supply voltage DC (EF003980): 5 V

More info

▲
ApplicationON/OFF controlNumber of phases1Number of poles1Mounting methodDIN railTerminal typeScrewLED indicatorRated operational voltage, AC24-240 VOperating voltage range, AC19-264 VRated operation current Ie at AC-140 ARated load current Close mounting36 APermissible I²t value1260 A²sProduct Height (unpacked)100 mmProduct Width (unpacked)47 mmProduct Depth (unpacked)100 mmSupply voltage DC5-24 VControl current max.7 mAMust operate voltage max.4 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhototriacSwitching at zero-crossing

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
