View larger
Images are for illustrative purposes only. Please refer to data sheet for details

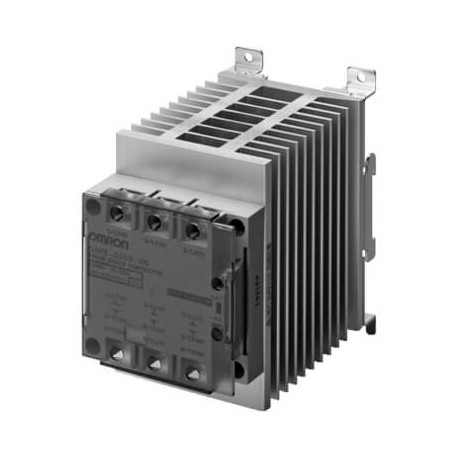

G3PE-535B-3N 12-24VDC G3PE2047A G3PE535B3NDC1224,1 OMRON 35A 200-480vac three Phase DIN Rail With disip.
G3PE-535B-3N 12-24VDC
G3PE2047A
G3PE535B3NDC1224.1
OMRON
1 Pcs.
35A 200-480vac three Phase DIN Rail With disip.
Solid state relay, 3-pole, DIN-track mounting, 35 A, 528 VAC max
Automation > Solid state relay
G3PB
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
ApplicationON/OFF controlNumber of phases3Number of poles3Mounting methodDIN rail/screwTerminal typeScrewComplete with socketLED indicatorRated operational voltage, AC200-480 VOperating voltage range, AC180-528 VRated operation current Ie at AC-135 APermissible I²t value1260 A²sApplicable heater capacity (AC1: resistive load)29 kWProduct Height (unpacked)140 mmProduct Width (unpacked)80 mmProduct Depth (unpacked)155 mmSupply voltage DC12-24 VControl current max.10 mAMust operate voltage max.9.6 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhototriacSwitching at zero-crossingCommunication port(s)None
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | AC |
| Voltage type for actuating (EF008242) | AC |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-1 (EF006069) | 35 A |
| Number of phases (EF000351) | 3 |
| Rated operation current Ie at AC-3 (EF006070) | 35 A |
| Rated control supply voltage DC (EF003980) | 12 V |
| Operating voltage AC 50 Hz (EF008206) | 200 V |
| Operating voltage AC 60 Hz (EF008207) | 200 V |
