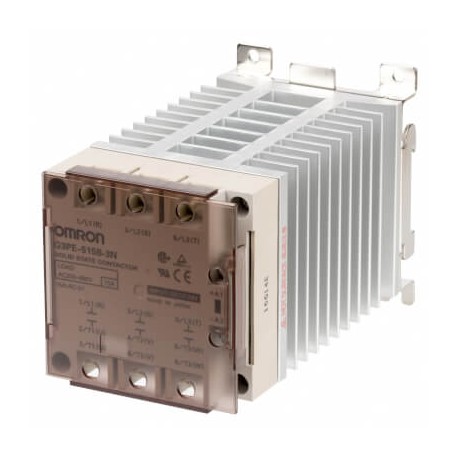

OMRON G3PE-515B-3N 12-24VDC G3PE-515B-3N 12-24VDC G3PE2045E G3PE515B3NDC1224,1 OMRON 15A 200-480vac three Phase DIN Rail With disip. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3PE-515B-3N 12-24VDC G3PE2045E G3PE515B3NDC1224,1 OMRON 15A 200-480vac three Phase DIN Rail With disip.

G3PE-515B-3N 12-24VDC

G3PE2045E

G3PE515B3NDC1224.1

OMRON

1 Pcs.

15A 200-480vac three Phase DIN Rail With disip. Solid state relay, 3-pole, DIN-track mounting, 15 A, 528 VAC max

Automation > Solid state relay
G3PB

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron G3PE-515B-3N 12-24VDC three-phase solid state relay handles multi-phase AC power switching with integrated heat dissipation features for industrial machinery control. Three-phase semiconductor relays are essential in factory automation for managing large motor loads and balanced heating systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): AC
  • Voltage type for actuating (EF008242): AC
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1 (EF006069): 15 A
  • Number of phases (EF000351): 3
  • Rated operation current Ie at AC-3 (EF006070): 15 A
  • Rated control supply voltage DC (EF003980): 12 V
  • Operating voltage AC 50 Hz (EF008206): 200 V
  • Operating voltage AC 60 Hz (EF008207): 200 V

More info

▲
ApplicationON/OFF controlNumber of phases3Number of poles3Mounting methodDIN rail/screwTerminal typeScrewComplete with socketLED indicatorRated operational voltage, AC200-480 VOperating voltage range, AC180-528 VRated operation current Ie at AC-115 APermissible I²t value260 A²sApplicable heater capacity (AC1: resistive load)12.5 kWProduct Height (unpacked)100 mmProduct Width (unpacked)80 mmProduct Depth (unpacked)155 mmSupply voltage DC12-24 VControl current max.10 mAMust operate voltage max.9.6 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhototriacSwitching at zero-crossingCommunication port(s)None
