View larger
Images are for illustrative purposes only. Please refer to data sheet for details

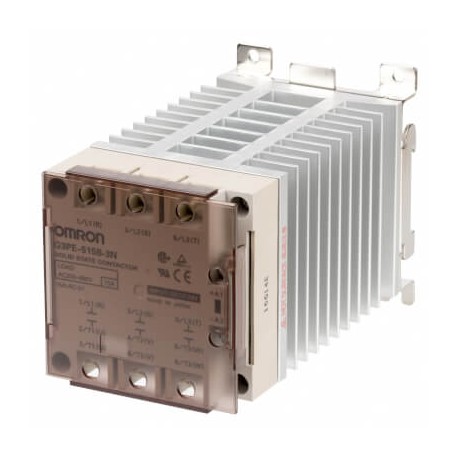

G3PE-515B-2N 12-24VDC G3PE2041B G3PE515B2NDC1224,1 OMRON 15a 200-480vac 3-Phase DIN-Rail With disip.
G3PE-515B-2N 12-24VDC
G3PE2041B
G3PE515B2NDC1224.1
OMRON
1 Pcs.
15a 200-480vac 3-Phase DIN-Rail With disip.
Solid state relay, 2-pole, DIN-track mounting, 15 A, 528VAC max
Automation > Solid state relay
G3PB
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
ApplicationON/OFF controlNumber of phases3Number of poles2Mounting methodDIN rail/screwTerminal typeScrewComplete with socketLED indicatorRated operational voltage, AC200-480 VOperating voltage range, AC180-528 VRated operation current Ie at AC-115 APermissible I²t value260 A²sApplicable heater capacity (AC1: resistive load)12.5 kWProduct Height (unpacked)100 mmProduct Width (unpacked)80 mmProduct Depth (unpacked)155 mmSupply voltage DC12-24 VControl current max.10 mAMust operate voltage max.9.6 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhototriacSwitching at zero-crossing
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | DC |
| Voltage type for actuating (EF008242) | DC |
| Switching at zero-crossing (EF011956) | Yes |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-1 (EF006069) | 15 A |
| Number of phases (EF000351) | 3 |
| Operating voltage DC (EF008208) | 200 V |
| Rated control supply voltage DC (EF003980) | 12 V |
