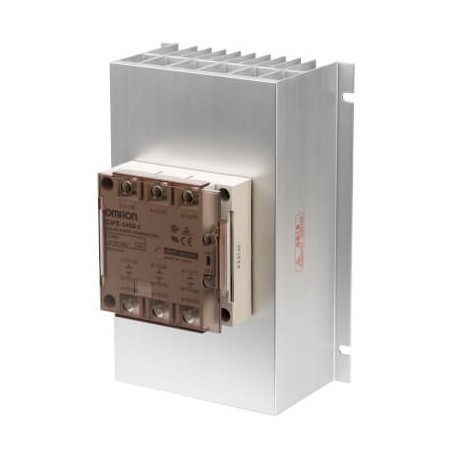

OMRON G3PE-545B-3 12-24VDC G3PE-545B-3 12-24VDC G3PE2032C G3PE545B3DC1224,1 OMRON 45A 200-480vac three-Phase Mounting Screw With disip. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3PE-545B-3 12-24VDC G3PE2032C G3PE545B3DC1224,1 OMRON 45A 200-480vac three-Phase Mounting Screw With disip.

G3PE-545B-3 12-24VDC

G3PE2032C

G3PE545B3DC1224.1

OMRON

1 Pcs.

45A 200-480vac three-Phase Mounting Screw With disip. Solid-State relay, 3-pole, screw mounting, 45A, 528VAC max

Automation > Solid state relay
G3PB

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron G3PE-545B-3 12-24VDC is a three-phase solid state relay engineered for screw mounting in rigorous industrial heating and motor control circuits. Multi-phase power controllers ensure synchronized switching across all lines to maintain balanced system performance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): AC
  • Voltage type for actuating (EF008242): AC
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1 (EF006069): 45 A
  • Number of phases (EF000351): 3
  • Rated operation current Ie at AC-3 (EF006070): 45 A
  • Rated control supply voltage DC (EF003980): 12 V
  • Operating voltage AC 50 Hz (EF008206): 200 V
  • Operating voltage AC 60 Hz (EF008207): 200 V

More info

▲
ApplicationON/OFF controlNumber of phases3Number of poles3Mounting methodScrewTerminal typeScrewComplete with socketLED indicatorRated operational voltage, AC200-480 VOperating voltage range, AC180-528 VRated operation current Ie at AC-145 APermissible I²t value1260 A²sApplicable heater capacity (AC1: resistive load)37.4 kWProduct Height (unpacked)190.5 mmProduct Width (unpacked)130.5 mmProduct Depth (unpacked)105 mmSupply voltage DC12-24 VControl current max.10 mAMust operate voltage max.9.6 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhototriac

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
