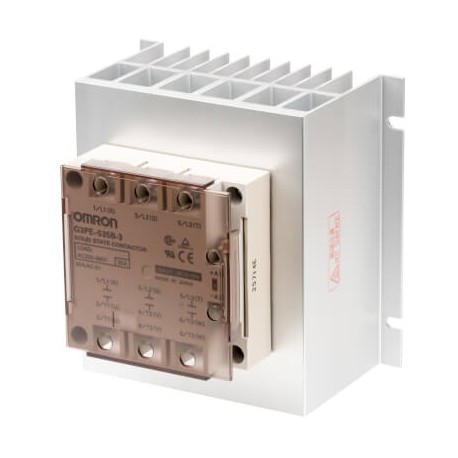

OMRON G3PE-535B-3 12-24VDC G3PE-535B-3 12-24VDC G3PE2031E G3PE535B3DC1224,1 OMRON 35A 200-400vac three-Phase With disip. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3PE-535B-3 12-24VDC G3PE2031E G3PE535B3DC1224,1 OMRON 35A 200-400vac three-Phase With disip.

G3PE-535B-3 12-24VDC

G3PE2031E

G3PE535B3DC1224.1

OMRON

1 Pcs.

35A 200-400vac three-Phase With disip. Solid-State relay, 3-pole, screw mounting, 35A, 528VAC max

Automation > Solid state relay
G3PB

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron three-phase solid-state relay G3PE-535B-3 12-24VDC is engineered for robust industrial heating and motor control applications. Solid-state switching devices provide reliable, maintenance-free operation in high-cycle environments by eliminating mechanical wear and sparking found in traditional contactors. This unit integrates thermal dissipation features to support demanding load requirements within automated control panels.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): AC
  • Voltage type for actuating (EF008242): AC
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1 (EF006069): 35 A
  • Number of phases (EF000351): 3
  • Rated operation current Ie at AC-3 (EF006070): 35 A
  • Rated control supply voltage DC (EF003980): 12 V
  • Operating voltage AC 50 Hz (EF008206): 200 V
  • Operating voltage AC 60 Hz (EF008207): 200 V

More info

▲
ApplicationON/OFF controlNumber of phases3Number of poles3Mounting methodScrewTerminal typeScrewComplete with socketLED indicatorRated operational voltage, AC200-480 VOperating voltage range, AC180-528 VRated operation current Ie at AC-135 APermissible I²t value1260 A²sApplicable heater capacity (AC1: resistive load)29 kWProduct Height (unpacked)130.5 mmProduct Width (unpacked)130.5 mmProduct Depth (unpacked)105 mmSupply voltage DC12-24 VControl current max.10 mAMust operate voltage max.9.6 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhototriac
