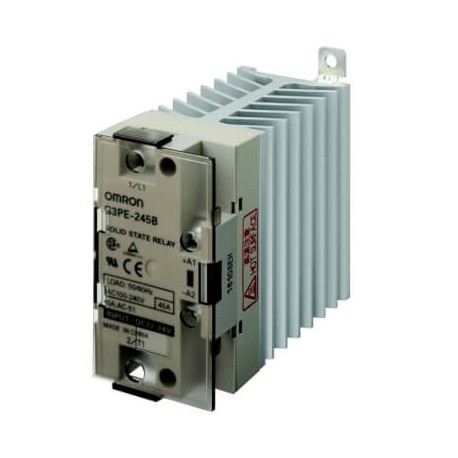

OMRON G3PE-535B 12-24VDC G3PE-535B 12-24VDC G3PE2011M G3PE535BDC1224,1 OMRON 35A 200-480vac, single-Phase C DIN With disip. Func. Ste.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3PE-535B 12-24VDC G3PE2011M G3PE535BDC1224,1 OMRON 35A 200-480vac, single-Phase C DIN With disip. Func. Ste..

G3PE-535B 12-24VDC

G3PE2011M

G3PE535BDC1224.1

OMRON

10 Pcs.

35A 200-480vac, single-Phase C DIN With disip. Func. Step-by-Zero Solid state relay, 1-pole, DIN-track mounting, 35 A, 528 VAC max

Automation > Solid state relay
G3PB

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A G3PE-535B 12-24VDC Omron solid state relay serves as an essential electronic control component used to switch heavy electrical loads securely and efficiently within automated machinery. These devices replace traditional electromechanical contactors in applications requiring frequent, noise-free cycling, such as thermal control systems and conveyor drives. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): AC
  • Voltage type for actuating (EF008242): AC
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1 (EF006069): 35 A
  • Number of phases (EF000351): 1
  • Rated operation current Ie at AC-3 (EF006070): 35 A
  • Rated control supply voltage DC (EF003980): 12 V
  • Operating voltage AC 50 Hz (EF008206): 200 V
  • Operating voltage AC 60 Hz (EF008207): 200 V

More info

▲
ApplicationON/OFF controlNumber of phases1Number of poles1Mounting methodDIN rail/screwTerminal typeScrewComplete with socketLED indicatorRated operational voltage, AC200-480 VOperating voltage range, AC180-528 VRated operation current Ie at AC-135 ARated load current Close mounting28 APermissible I²t value1350 A²sApplicable heater capacity (AC1: resistive load)14 kWProduct Height (unpacked)100 mmProduct Width (unpacked)44.5 mmProduct Depth (unpacked)100 mmSupply voltage DC12-24 VControl current max.10 mAMust operate voltage max.9.6 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhototriacSwitching at zero-crossingCommunication port(s)None
