OMRON G3PE-515B 12-24VDC G3PE-515B 12-24VDC G3PE2009R G3PE515BDC1224,1 OMRON 15A 200-480vac, single-Phase C DIN With disip. Func. Ste.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

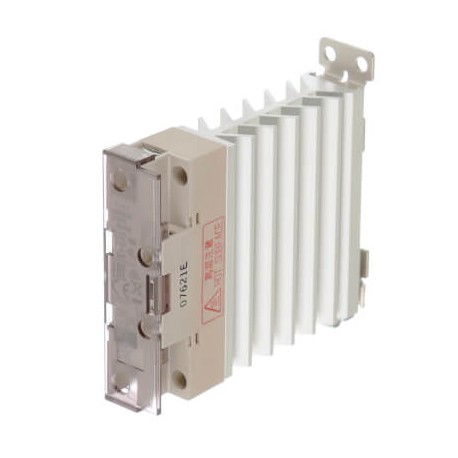

G3PE-515B 12-24VDC G3PE2009R G3PE515BDC1224,1 OMRON 15A 200-480vac, single-Phase C DIN With disip. Func. Ste..

G3PE-515B 12-24VDC

G3PE2009R

G3PE515BDC1224.1

OMRON

1 Pcs.

15A 200-480vac, single-Phase C DIN With disip. Func. Step-by-Zero Solid state relay, 1-pole, DIN-track mounting, 15 A, 528 VAC max

Automation > Solid state relay
G3PB

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for efficient DIN rail installation, the Omron G3PE-515B 12-24VDC solid state relay provides precise electrical isolation and switching control. Solid state relays function as vital components in automated production machinery, offering noise-free operation for sensitive instrumentation and heating loops. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): AC
  • Voltage type for actuating (EF008242): AC
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1 (EF006069): 15 A
  • Number of phases (EF000351): 1
  • Rated operation current Ie at AC-3 (EF006070): 15 A
  • Rated control supply voltage DC (EF003980): 12 V
  • Operating voltage AC 50 Hz (EF008206): 200 V
  • Operating voltage AC 60 Hz (EF008207): 200 V

More info

▲
ApplicationON/OFF controlNumber of phases1Number of poles1Mounting methodDIN rail/screwTerminal typeScrewComplete with socketLED indicatorRated operational voltage, AC200-480 VOperating voltage range, AC180-528 VRated operation current Ie at AC-115 ARated load current Close mounting13 APermissible I²t value128 A²sApplicable heater capacity (AC1: resistive load)6 kWProduct Height (unpacked)100 mmProduct Width (unpacked)22.5 mmProduct Depth (unpacked)100 mmSupply voltage DC12-24 VControl current max.10 mAMust operate voltage max.9.6 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhototriacSwitching at zero-crossingCommunication port(s)None

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
