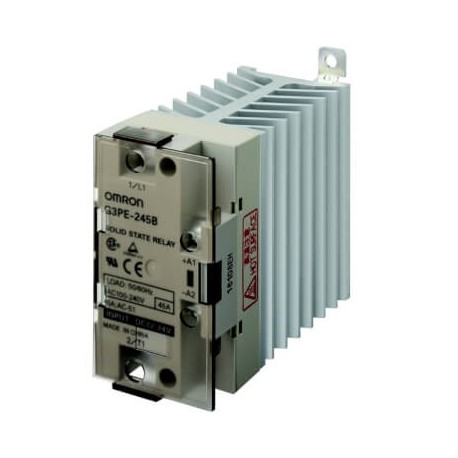

OMRON G3PE-235B 12-24VDC G3PE-235B 12-24VDC G3PE2003M G3PE235BDC1224,1 OMRON 35A 100-240vac single Phase C DIN disp. Func. Step-by-Ze.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3PE-235B 12-24VDC G3PE2003M G3PE235BDC1224,1 OMRON 35A 100-240vac single Phase C DIN disp. Func. Step-by-Ze..

G3PE-235B 12-24VDC

G3PE2003M

G3PE235BDC1224.1

OMRON

10 Pcs.

35A 100-240vac single Phase C DIN disp. Func. Step-by-Zero Solid state relay, 1-pole, DIN-track mounting, 35 A, 264 VAC max

Automation > Solid state relay
G3PB

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron G3PE-235B 12-24VDC single-phase solid state relay offers dependable electronic switching for DIN-rail or panel installations within industrial control panels. Solid state technology ensures quiet, arc-free operation, making these relays ideal for temperature control systems and automated manufacturing machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): AC
  • Voltage type for actuating (EF008242): AC
  • Switching at zero-crossing (EF011956): Yes
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1 (EF006069): 35 A
  • Number of phases (EF000351): 1
  • Rated operation current Ie at AC-3 (EF006070): 35 A
  • Rated control supply voltage DC (EF003980): 12 V
  • Operating voltage AC 50 Hz (EF008206): 100 V
  • Operating voltage AC 60 Hz (EF008207): 100 V

More info

▲
ApplicationON/OFF controlNumber of phases1Number of poles1Mounting methodDIN rail/screwTerminal typeScrewComplete with socketLED indicatorRated operational voltage, AC100-240 VOperating voltage range, AC75-264 VRated operation current Ie at AC-135 ARated load current Close mounting28 APermissible I²t value1260 A²sApplicable heater capacity (AC1: resistive load)7 kWProduct Height (unpacked)100 mmProduct Width (unpacked)44.5 mmProduct Depth (unpacked)100 mmSupply voltage DC12-24 VControl current max.10 mAMust operate voltage max.9.6 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhototriacSwitching at zero-crossingCommunication port(s)None

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
