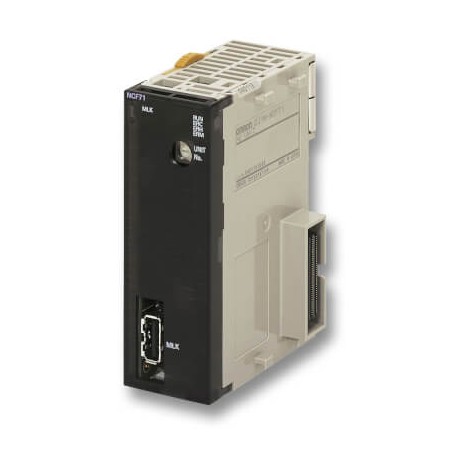

CJ1W-NCF71 CJ1W0317E CJ1WNCF71,1 OMRON Module positioner 16 axes (ML-II) CJ1
CJ1W-NCF71
CJ1W0317E
CJ1WNCF71.1
OMRON
1 Pcs.
Module positioner 16 axes (ML-II) CJ1
CJ1 Position control unit with MECHATROLINK II, 16 axes
Automation > PLC function/technology module
PLC based
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| I/O system | CJ I/O Bus |
| Expansion unit type | CPU Bus Unit |
| Type of module | Positioning |
| Max. number of PTP axes | 16 |
| I/O connection type | Other |
| Detachable I/O connector | |
| Suitable for safety functions | |
| Communication port(s) | MECHATROLINK II Master |
| Product Height (unpacked) | 90 mm |
| Product Width (unpacked) | 31 mm |
| Product Depth (unpacked) | 66.5 mm |
| Product Weight (unpacked) | 950 g |
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| SIL according to IEC 61508 (EF009889) | None |
| Explosion safety category for gas (EF003997) | None |
| Suitable for counting (EF003248) | No |
| Suitable for welding control (EF003251) | Yes |
| Suitable for multi-axis positioning (EF003267) | Yes |
| Suitable for flux measurement (EF003261) | No |
| Suitable for weighing (EF003249) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Suitable for incremental data detection (EF003258) | No |
| Suitable for cam controller (EF003263) | No |
| Suitable for SSI (EF003254) | No |
| Suitable for CNC (EF003256) | Yes |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Suitable for NC (EF003253) | No |
| Suitable for detection absolute value (EF003259) | No |
| Suitable for flying saw (EF003264) | No |
| Redundancy (EF003156) | No |
| Suitable for path controller (EF003262) | No |
| Suitable for safety functions (EF001597) | No |
| Suitable for single-axis controller (EF003266) | Yes |
| Suitable for flux controller (EF003260) | No |
| Suitable for multi-axis control (EF003265) | Yes |
| Suitable for single-axis positioning (EF003268) | Yes |
| Suitable for pressure control (EF003252) | No |
| Suitable for temperature control (EF008344) | No |
| Suitable for electronic positioning (EF003255) | Yes |
| Width (EF000008) | 31 mm |
| Height (EF000040) | 90 mm |
| Number of functions (EF003244) | 16 |
| Depth (EF000049) | 66.5 mm |
