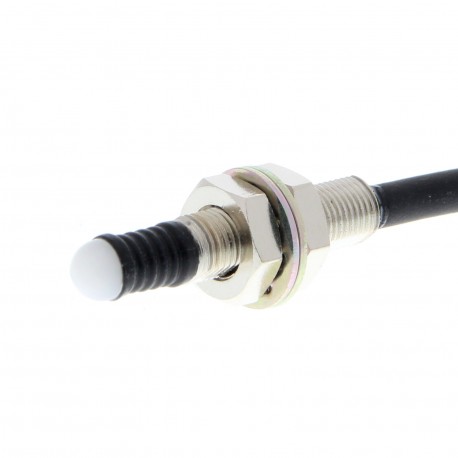

OMRON D5B-5011 D5B-5011 D5B 5011M D5B5011 OMRON End of career high sensitivity View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D5B-5011 D5B 5011M D5B5011 OMRON End of career high sensitivity

D5B-5011

D5B 5011M

D5B5011

OMRON

1 Pcs.

End of career high sensitivity Tactile Limit switch, M5 body, hemispheric actuator, 1 m prewired

Automation > End switch
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron D5B-5011 high-sensitivity end of career sensor is a precision limit switch engineered to detect exact positioning milestones in automated tooling and robotics. Position sensors of this type help guarantee precise repeatability and stopping accuracy during high-speed cyclic manufacturing operations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Type of control element (EF006976): Plunger
  • Type of electric connection (EF003961): With cable preassembled
  • Switching function (EF000189): Slow-action switch
  • Housing material (EF001596): Metal
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): No
  • Forced opening (EF006694): No
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.03 A
  • Number of contacts as normally closed contact (EF008255): 1
  • Diameter sensor (EF007111): 5 mm

More info

▲
Material housingMetalDegree of protection (IP)IP67Actuator typePlungerActuator detailHemisphericConnection methodCableCable length1 mCable entry directionBottomNumber of contacts, normally-open0Number of contacts, normally-closed1Number of contacts, change-over0Make before breakSwitch actionSlow actionLoad typeMicro loadWith status indication

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
