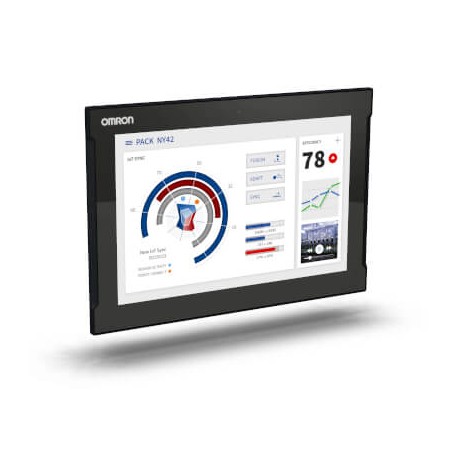

OMRON NYP2A-30470-15WC1000 NYP2A-30470-15WC1000 NYP10701E NYP2A3047015WC1000 OMRON Industrial Panel PC with Intel® Atom™ E3940, 8 GB DR.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NYP2A-30470-15WC1000 NYP10701E NYP2A3047015WC1000 OMRON Industrial Panel PC with Intel® Atom™ E3940, 8 GB DR..

NYP2A-30470-15WC1000

NYP10701E

NYP2A3047015WC1000

OMRON

1 Pcs.

Industrial Panel PC with Intel® Atom™ E3940, 8 GB DRAM (non-ECC), 256 GB CFast iMLC, WIN 10 IoT 2019 (64-bit), No exp. slots, No I/F option, 15.4" (1280x800) display with capacitive touchscreen, build-in type Industrial Panel PC with Intel® Atom™ E3940, 8 GB DRAM (non-ECC), 256 GB CFast iMLC, WIN 10 IoT 2019 (64-bit), No exp. slots, No I/F option, 15.4" (12

Automation > Panel PC
NY

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operator interface terminals built on industrial panel PC architecture deliver robust computing power and graphic visualization for automated production lines. Such hardware is commonly mounted in control enclosures to facilitate human-machine interaction and system monitoring.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of display (EF008244): TFT
  • Voltage type (supply voltage) (EF002991): DC
  • Preinstalled operating system (EF007535): Windows 10
  • Degree of protection (IP), front side (EF003118): IP65
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • With floppy disc drive (EF003128): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Mouse-cursor control integrated (EF003143): Yes
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for EtherNet/IP (EF007521): Yes

More info

▲
Screen diagonal15.4 inMax. number of motion axes0Processor familyIntel® Atom™Processor specificationE3940 (1.6 GHz)Cooling methodPassive cooling (fanless)Memory8 GB RAM (non ECC)Storage256 GB CFast MLCOperating systemWindows 10 IoT Enterprise 2019 LTSC - 64 bitExpansion slotNo ExpansionModular portNo PortCommunication port(s)EtherNet/IP, Ethernet TCP/IP, USBVideo outputDVI-IMaterial housingAluminium, blackDisplay ratio16:10Number of pixels, horizontal1280Number of pixels, vertical800Type of displayTFTTouchscreen technologyProjected capacitiveMounting methodBuild-inDegree of protection (IP), front sideIP65Operating temperature0-55 °CSupply voltage DC20.4-28.8 VHeight of the front277 mmWidth of the front401 mmHeight of panel cutout259 mmWidth of panel cutout383 mmBuilt-in depth63 mmProduct Weight (unpacked)5600 g
