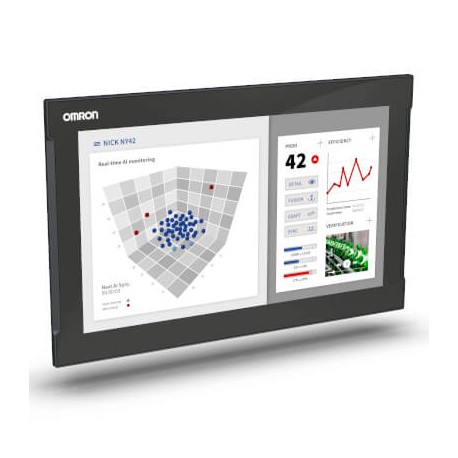

OMRON NYP2A-20450-19WC1000 NYP2A-20450-19WC1000 NYP10787B NYP2A2045019WC1000 OMRON Industrial Panel PC with Intel® Atom™ E3940, 4 GB DR.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NYP2A-20450-19WC1000 NYP10787B NYP2A2045019WC1000 OMRON Industrial Panel PC with Intel® Atom™ E3940, 4 GB DR..

NYP2A-20450-19WC1000

NYP10787B

NYP2A2045019WC1000

OMRON

1 Pcs.

Industrial Panel PC with Intel® Atom™ E3940, 4 GB DRAM (non-ECC), 64 GB CFast iMLC, WIN 10 IoT 2019 (64-bit), Not exp. slots, No I/F, option, 18.5" (1920x1080) display with capacitive touchscreen, build-in type Industrial Panel PC with Intel® Atom™ E3940, 4 GB DRAM (non-ECC), 64 GB CFast iMLC, WIN 10 IoT 2019 (64-bit), No exp. slots, No I/F option, 18.5" (192

Automation > Panel PC
NY

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron Industrial Panel PC with Intel® Atom™ E3940, 4 GB DR.. (NYP2A-20450-19WC1000) functions as a robust operator interface and computing unit in automated production environments, enabling machine visualization, data logging, and software execution on the factory floor. These terminals provide direct human-machine interaction and reliable processing power directly at the machine face.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of display (EF008244): TFT
  • Voltage type (supply voltage) (EF002991): DC
  • Preinstalled operating system (EF007535): Windows 10
  • Degree of protection (IP), front side (EF003118): IP65
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • With floppy disc drive (EF003128): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Mouse-cursor control integrated (EF003143): Yes
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for EtherNet/IP (EF007521): Yes

More info

▲
Screen diagonal18.5 inMax. number of motion axes0Processor familyIntel® Atom™Processor specificationE3940 (1.6 GHz)Cooling methodPassive cooling (fanless)Memory4 GB RAM (non ECC)Storage64 GB Cfast MLCOperating systemWindows 10 IoT Enterprise 2019 LTSC - 64 bitExpansion slotNo ExpansionModular portNo PortCommunication port(s)EtherNet/IP, Ethernet TCP/IP, USBVideo outputDVI-IMaterial housingAluminium, blackDisplay ratio16:9Number of pixels, horizontal1920Number of pixels, vertical1080Type of displayTFTTouchscreen technologyProjected capacitiveMounting methodBuild-inDegree of protection (IP), front sideIP65Operating temperature0-55 °CSupply voltage DC20.4-28.8 VHeight of the front303 mmWidth of the front481 mmHeight of panel cutout285 mmWidth of panel cutout463 mmBuilt-in depth63 mmProduct Weight (unpacked)6600 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
