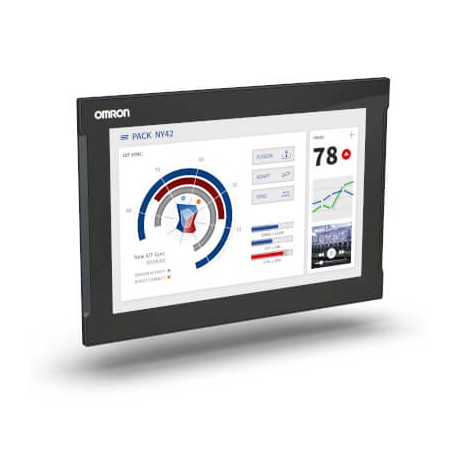

OMRON NY532-1500-012443660 NY532-1500-012443660 NY510317R NY5321500012443660 OMRON Machine Controller for 64 axes, Industrial Panel PC .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NY532-1500-012443660 NY510317R NY5321500012443660 OMRON Machine Controller for 64 axes, Industrial Panel PC ..

NY532-1500-012443660

NY510317R

NY5321500012443660

OMRON

1 Pcs.

Machine Controller for 64 axes, Industrial Panel PC with Intel® Core™ i5-7440EQ, 8 GB RAM (non ECC), 128 GB CFast MLC, Windows 10 IoT Enterprise 2019 LTSC - 64 bit, NYML Port, 15.4" display with capacitive touchscreen Machine Controller for 64 axes, Industrial Panel PC with Intel® Core™ i5-7440EQ, 8 GB RAM (non ECC), 128 GB CFast MLC, Windows 10 IoT Enterprise 2019

Automation > Panel PC
NY

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Industrial panel PC configured as an Omron machine controller for 64 axes, part number NY532-1500-012443660, is deployed in complex automation architectures to manage high-precision motion tasks and provide operator control interfaces. These heavy-duty computing units facilitate real-time visualization and synchronized axis control in demanding industrial environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of display (EF008244): TFT
  • Voltage type (supply voltage) (EF002991): DC
  • Preinstalled operating system (EF007535): Windows 10
  • Degree of protection (IP), front side (EF003118): IP65
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • With floppy disc drive (EF003128): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Mouse-cursor control integrated (EF003143): Yes
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for EtherNet/IP (EF007521): Yes

More info

▲
IPC typePanel PCController typeMachine ControlMax. number of motion axes64Screen diagonal15.4 inProcessor familyIntel® Core™ i5Processor specification7440EQ (2.9 GHz)Cooling methodActive cooling (fan)Memory8 GB RAM (non ECC)Storage128 GB CFast MLCOperating systemWindows 10 IoT Enterprise 2019 LTSC - 64 bitExpansion slotNo ExpansionModular portNYMLCommunication port(s)EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, USBVideo outputDVI-IDisplay ratio16:10Number of pixels, horizontal1280Number of pixels, vertical800Type of displayTFTTouchscreen technologyProjected capacitiveMounting methodBuild-inMaterial housingAluminium, blackDegree of protection (IP), front sideIP65Operating temperature0-55 °CSupply voltage DC20.4-28.8 VHeight of the front277 mmWidth of the front401 mmHeight of panel cutout259 mmWidth of panel cutout383 mmBuilt-in depth63 mmProduct Weight (unpacked)6000 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
