View larger
Images are for illustrative purposes only. Please refer to data sheet for details

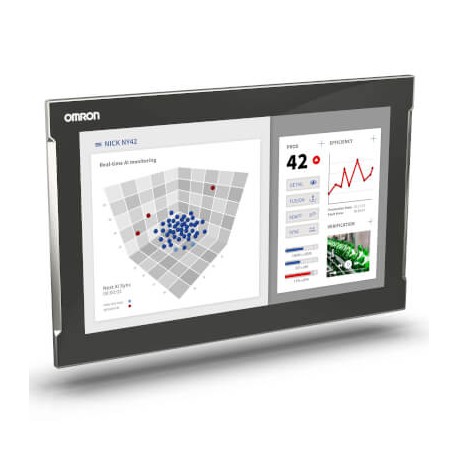

NY532-1400-023445600 NY510361F NY5321400023445600 OMRON Machine Controller for 32 axes, Industrial Panel PC ..
NY532-1400-023445600
NY510361F
NY5321400023445600
OMRON
1 Pcs.
Machine Controller for 32 axes, Industrial Panel PC with Intel® Core™ i5-7440EQ, 32 GB RAM (Non-ECC), 128 GB CFast MLC, Windows 10 IoT Enterprise 2019 LTSC - 64 bit, 18.5" (1920x1080) display with capacitive touchscreen, Ni plating
Machine Controller for 32 axes, Industrial Panel PC with Intel® Core™ i5-7440EQ, 32 GB RAM (Non-ECC), 128 GB CFast MLC, Windows 10 IoT Enterprise 2019
Automation > Panel PC
NY
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
IPC typePanel PCController typeMachine ControlMax. number of motion axes32Screen diagonal18.5 inProcessor familyIntel® Core™ i5Processor specification7440EQ (2.9 GHz)Cooling methodActive cooling (fan)Memory32 GB RAM (non ECC)Storage128 GB CFast MLCOperating systemWindows 10 IoT Enterprise 2019 LTSC - 64 bitExpansion slotNo ExpansionModular portNo PortCommunication port(s)EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, USBVideo outputDVI-IDisplay ratio16:9Number of pixels, horizontal1920Number of pixels, vertical1080Type of displayTFTTouchscreen technologyProjected capacitiveMounting methodBuild-inMaterial housingAluminium, nickel platingDegree of protection (IP), front sideIP65Operating temperature0-55 °CSupply voltage DC20.4-28.8 VHeight of the front303 mmWidth of the front481 mmHeight of panel cutout285 mmWidth of panel cutout463 mmBuilt-in depth63 mmProduct Weight (unpacked)7000 g
| Feature Name | Feature Value |
|---|---|
| Type of display (EF008244) | TFT |
| Degree of protection (NEMA) (EF011959) | Other |
| Voltage type (supply voltage) (EF002991) | DC |
| Preinstalled operating system (EF007535) | Windows 10 |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Radio standard UMTS (EF008525) | No |
| Supporting protocol for EtherCAT (EF017564) | Yes |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Supporting protocol for SERCOS (EF006657) | No |
| IO link master (EF007298) | No |
| Rack-assembly possible (EF007018) | No |
| With floppy disc drive (EF003128) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for LON (EF003017) | No |
| Mouse-cursor control integrated (EF003143) | Yes |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Radio standard GSM (EF008524) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Suitable for rail mounting (EF003972) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| With optical drive (EF012515) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Certified for UL hazardous location class III (EF017627) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Radio standard GPRS (EF008523) | No |
| Mounting type, table foot (EF007019) | No |
| Certified for UL hazardous location class II (EF017625) | No |
| With hard disc (EF002000) | No |
| Certified for UL hazardous location class I (EF017622) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | Yes |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Customer individual configuration (EF003132) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Certified for UL hazardous location group G (non-conductive dusts) (EF017639) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Certified for UL hazardous location group F (carbonaceous dusts) (EF017638) | No |
| Radio standard Bluetooth (EF007178) | No |
| Suitable for safety functions (EF001597) | No |
| Certified for UL hazardous location group E (metal dusts) (EF017637) | No |
| Mounting type, gallows mounting (EF007017) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Certified for UL hazardous location group A (acetylene) (EF017632) | No |
| Certified for UL hazardous location division 2 (EF017629) | No |
| Certified for UL hazardous location division 1 (EF017628) | No |
| Integrated keyboard (EF003141) | Yes |
| With touch screen (EF003102) | Yes |
| Certified for UL hazardous location group D (propane) (EF017636) | No |
| With other storage media (EF003129) | Yes |
| Supporting protocol for ASI (EF003051) | No |
| Certified for UL hazardous location group C (ethylene) (EF017635) | No |
| Certified for UL hazardous location group B (hydrogen) (EF017633) | No |
| Number of function buttons (EF003142) | 0 |
| Number of HW-interfaces other (EF003027) | 1 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces PS2 (EF003139) | 0 |
| Height of the front (EF003652) | 303 mm |
| Width of the front (EF003651) | 481 mm |
| Number of free AGP-slots (EF003133) | 0 |
| Number of HW-interfaces USB (EF003025) | 4 |
| Number of pixels, vertical (EF003100) | 1080 |
| Number of buttons with LED (EF009259) | 0 |
| Number of free PCMCIA-slots (EF003136) | 0 |
| Number of free ISA-slots (EF003135) | 0 |
| Number of system buttons (EF009260) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 3 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces SCSI (EF003138) | 0 |
| Number of free PCI-slots (EF003134) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of pixels, horizontal (EF003099) | 1920 |
| Max. main memory (EF003123) | 8192 MB |
| Screen diagonal (EF002032) | 18.5 inch |
| Operating temperature (EF002393) | 0 °C |
| Supply voltage DC (EF007534) | 20.4 V |
