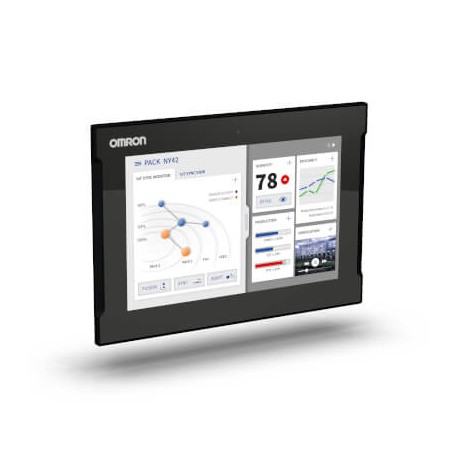

OMRON NY532-1400-011445760 NY532-1400-011445760 NY510307A NY5321400011445760 OMRON Machine Controller for 32 axes, Industrial Panel PC .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NY532-1400-011445760 NY510307A NY5321400011445760 OMRON Machine Controller for 32 axes, Industrial Panel PC ..

NY532-1400-011445760

NY510307A

NY5321400011445760

OMRON

1 Pcs.

Machine Controller for 32 axes, Industrial Panel PC with Intel® Core™ i5-7440EQ, 32 GB RAM (Non-ECC), 256 GB CFast MLC, Windows 10 IoT Enterprise 2019 LTSC - 64 bit, NYML Port, 12.1" display with capacitive touchscreen Machine Controller for 32 axes, Industrial Panel PC with Intel® Core™ i5-7440EQ, 32 GB RAM (Non-ECC), 256 GB CFast MLC, Windows 10 IoT Enterprise 2019

Automation > Panel PC
NY

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as an Omron Machine Controller for 32 axes, Industrial Panel PC, this Omron NY532-1400-011445760 unit delivers high-performance industrial computing and visualization capabilities directly to machine enclosures. Such devices integrate processing hardware, operating systems, and display interfaces into a single enclosure to streamline control architecture and operator interaction in factory settings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of display (EF008244): TFT
  • Voltage type (supply voltage) (EF002991): DC
  • Preinstalled operating system (EF007535): Windows 10
  • Degree of protection (IP), front side (EF003118): IP65
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • With floppy disc drive (EF003128): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Mouse-cursor control integrated (EF003143): Yes
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for EtherNet/IP (EF007521): Yes

More info

▲
IPC typePanel PCController typeMachine ControlMax. number of motion axes32Screen diagonal12.1 inProcessor familyIntel® Core™ i5Processor specification7440EQ (2.9 GHz)Cooling methodActive cooling (fan)Memory32 GB RAM (non ECC)Storage256 GB CFast MLCOperating systemWindows 10 IoT Enterprise 2019 LTSC - 64 bitExpansion slotNo ExpansionModular portNYMLCommunication port(s)EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, USBVideo outputDVI-IDisplay ratio16:10Number of pixels, horizontal1280Number of pixels, vertical800Type of displayTFTTouchscreen technologyProjected capacitiveMounting methodBuild-inMaterial housingAluminium, blackDegree of protection (IP), front sideIP65Operating temperature0-55 °CSupply voltage DC20.4-28.8 VHeight of the front234 mmWidth of the front332 mmHeight of panel cutout216 mmWidth of panel cutout314 mmBuilt-in depth63 mmProduct Weight (unpacked)5100 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
