> OMRON > PC Industrial > NY > NY510297M

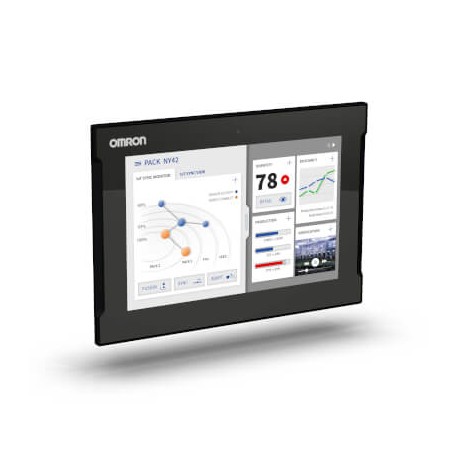

OMRON NY532-1300-011443700 NY532-1300-011443700 NY510297M NY5321300011443700 OMRON Machine Controller for 16 axes, Industrial Panel PC .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NY532-1300-011443700 NY510297M NY5321300011443700 OMRON Machine Controller for 16 axes, Industrial Panel PC ..

NY532-1300-011443700

NY510297M

NY5321300011443700

OMRON

1 Pcs.

Machine Controller for 16 axes, Industrial Panel PC with Intel® Core™ i5-7440EQ, 8 GB RAM (non ECC), 256 GB CFast MLC, Windows 10 IoT Enterprise 2019 LTSC - 64 bit, 12.1" display with capacitive touchscreen Machine Controller for 16 axes, Industrial Panel PC with Intel® Core™ i5-7440EQ, 8 GB RAM (non ECC), 256 GB CFast MLC, Windows 10 IoT Enterprise 2019

Automation > Panel PC
NY

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for precise multi-axis automation control, the Omron machine controller for 16 axes, industrial panel pc (NY532-1300-011443700) combines high-speed processing with an operator interface to streamline industrial workflows.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of display (EF008244): TFT
  • Voltage type (supply voltage) (EF002991): DC
  • Preinstalled operating system (EF007535): Windows 10
  • Degree of protection (IP), front side (EF003118): IP65
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • With floppy disc drive (EF003128): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Mouse-cursor control integrated (EF003143): Yes
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for EtherNet/IP (EF007521): Yes

More info

▲
IPC typePanel PCController typeMachine ControlMax. number of motion axes16Screen diagonal12.1 inProcessor familyIntel® Core™ i5Processor specification7440EQ (2.9 GHz)Cooling methodActive cooling (fan)Memory8 GB RAM (non ECC)Storage256 GB CFast MLCOperating systemWindows 10 IoT Enterprise 2019 LTSC - 64 bitExpansion slotNo ExpansionModular portNo PortCommunication port(s)EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, USBVideo outputDVI-IDisplay ratio16:10Number of pixels, horizontal1280Number of pixels, vertical800Type of displayTFTTouchscreen technologyProjected capacitiveMounting methodBuild-inMaterial housingAluminium, blackDegree of protection (IP), front sideIP65Operating temperature0-55 °CSupply voltage DC20.4-28.8 VHeight of the front234 mmWidth of the front332 mmHeight of panel cutout216 mmWidth of panel cutout314 mmBuilt-in depth63 mmProduct Weight (unpacked)5100 g
