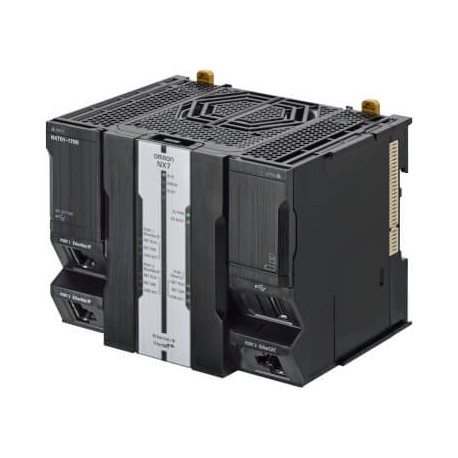

OMRON NX701-1720 NX701-1720 NX010136F NX7011720 OMRON Sysmac CPU NX7 with database connectivity, 80 MB of memory, port EtherC.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX701-1720 NX010136F NX7011720 OMRON Sysmac CPU NX7 with database connectivity, 80 MB of memory, port EtherC..

NX701-1720

NX010136F

NX7011720

OMRON

1 Pcs.

Sysmac CPU NX7 with database connectivity, 80 MB of memory, port EtherCAT (256 axes, 512 nodes EtherCAT in total) and 2-port EtherNet/IP Sysmac NX7 CPU with Database Connectivity, 80MB memory, built-in EtherCAT (256 servo axes, in total 512 EtherCAT nodes) and 2 EtherNet/IP ports

Automation > PLC CPU-module
NX701 Machine Controllers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron NX701-1720 is a modular Sysmac CPU unit equipped with database connectivity, designed for high-performance industrial automation and data-intensive machine control. Central processing units act as the computational core of control systems, executing complex logic and managing network traffic. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Model (EF000010): Modular
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for IEC 60870 (EF016069): No
  • Supporting protocol for EtherNet/IP (EF007521): Yes

More info

▲
Controller functionalityDB connection, Motion control, OPC-UA, Sequence controlPrimary task cycle time0.125 msProgram memory80 MBVariables memory260 MBMax. number of synchronous axes256Max. number of axes (incl. virtual)256Communication port(s)EtherCAT Master, EtherNet/IP, Ethernet TCP/IPCommunication option(s)NoneMax. number of remote I/O nodes512I/O systemNX I/O BusMax. number of expansion units0Product Height (unpacked)100 mmProduct Width (unpacked)132 mmProduct Depth (unpacked)100 mmProduct Weight (unpacked)880 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
