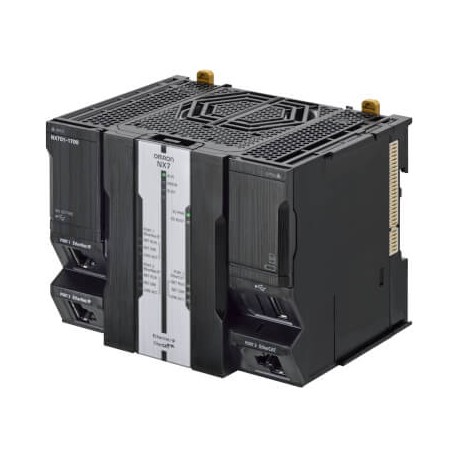

OMRON NX701-1600 NX701-1600 NX010038F NX7011600 OMRON NX7 Machine Controller 128 Axes View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX701-1600 NX010038F NX7011600 OMRON NX7 Machine Controller 128 Axes

NX701-1600

NX010038F

NX7011600

OMRON

1 Pcs.

NX7 Machine Controller 128 Axes Sysmac NX7 CPU, 80MB memory, built-in EtherCAT (128 servo axes, in total 512 EtherCAT nodes) and 2 EtherNet/IP ports

Automation > PLC CPU-module
NX701 Machine Controllers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An advanced Omron machine controller coordinates synchronized motion, logic sequencing, and high-speed networking across demanding multi-axis manufacturing systems. This modular processing unit delivers deterministic performance for complex production lines requiring precise spatial and temporal coordination. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Model (EF000010): Modular
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for IEC 60870 (EF016069): No
  • Supporting protocol for EtherNet/IP (EF007521): Yes

More info

▲
Controller functionalityMotion control, OPC-UA, Sequence controlPrimary task cycle time0.125 msProgram memory80 MBVariables memory260 MBMax. number of synchronous axes128Max. number of axes (incl. virtual)128Communication port(s)EtherCAT Master, EtherNet/IP, Ethernet TCP/IPCommunication option(s)NoneMax. number of remote I/O nodes512I/O systemNX I/O BusMax. number of expansion units0Product Height (unpacked)100 mmProduct Width (unpacked)132 mmProduct Depth (unpacked)100 mmProduct Weight (unpacked)880 g
