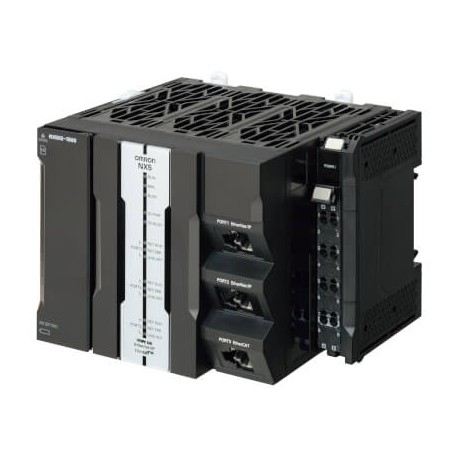

OMRON NX502-1500 NX502-1500 NX010309A NX5021500 OMRON Sysmac NX5 CPU with SQL Database Connectivity, 80 MB program and 260 MB.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX502-1500 NX010309A NX5021500 OMRON Sysmac NX5 CPU with SQL Database Connectivity, 80 MB program and 260 MB..

NX502-1500

NX010309A

NX5021500

OMRON

1 Pcs.

Sysmac NX5 CPU with SQL Database Connectivity, 80 MB program and 260 MB data memory, built-in EtherCAT (64 servo axes, in total 256 EtherCAT nodes) an Sysmac NX5 CPU with SQL Database Connectivity, 80 MB program and 260 MB data memory, built-in EtherCAT (64 servo axes, in total 256 EtherCAT nodes) and 2 Ethernet ports (OPC-UA and EtherNet/IP)

Automation > PLC CPU-module
Machine Controllers NX1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron Sysmac NX5 CPU with SQL Database Connectivity (NX502-1500) functions as a modular processing unit designed to execute automation logic while managing structured query language database communications in complex industrial control architectures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Modular
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for IEC 60870 (EF016069): No
  • Supporting protocol for EtherNet/IP (EF007521): Yes
  • Supporting protocol for DNP3 (EF016068): No

More info

▲
Controller functionalityDB connection, Motion control, OPC-UA, Sequence controlPrimary task cycle time0.250 msProgram memory80 MBVariables memory260 MBMax. number of synchronous axes64Max. number of axes (incl. virtual)128Communication port(s)EtherCAT Master, EtherNet/IP, Ethernet TCP/IPCommunication option(s)EtherCAT Slave, Ethernet TCP/IP, IO-Link, Serial RS-232C, Serial RS-422, Serial RS-485Max. number of remote I/O nodes256I/O systemNX I/O BusMax. number of expansion units63Product Weight (unpacked)946.468 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
