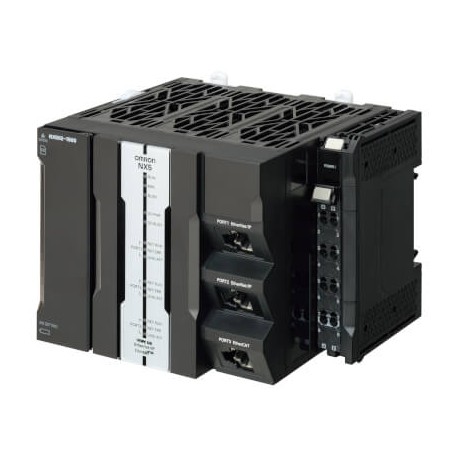

OMRON NX502-1400 NX502-1400 NX010308C NX5021400 OMRON Sysmac NX5 CPU with SQL Database Connectivity, 80 MB program and 260 MB.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX502-1400 NX010308C NX5021400 OMRON Sysmac NX5 CPU with SQL Database Connectivity, 80 MB program and 260 MB..

NX502-1400

NX010308C

NX5021400

OMRON

1 Pcs.

Sysmac NX5 CPU with SQL Database Connectivity, 80 MB program and 260 MB data memory, built-in EtherCAT (32 servo axes, in total 256 EtherCAT nodes) an Sysmac NX5 CPU with SQL Database Connectivity, 80 MB program and 260 MB data memory, built-in EtherCAT (32 servo axes, in total 256 EtherCAT nodes) and 2 Ethernet ports (OPC-UA and EtherNet/IP)

Automation > PLC CPU-module
Machine Controllers NX1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron NX502-1400 is a modular CPU designed to orchestrate complex industrial processes and handle database interactions within automated systems. Programmable logic controllers serve as the central processing hub for machine automation, executing sequential control, motion routines, and communication tasks across networked factory floors.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Modular
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for IEC 60870 (EF016069): No
  • Supporting protocol for EtherNet/IP (EF007521): Yes
  • Supporting protocol for DNP3 (EF016068): No

More info

▲
Controller functionalityDB connection, Motion control, OPC-UA, Sequence controlPrimary task cycle time0.250 msProgram memory80 MBVariables memory260 MBMax. number of synchronous axes32Max. number of axes (incl. virtual)64Communication port(s)EtherCAT Master, EtherNet/IP, Ethernet TCP/IPCommunication option(s)EtherCAT Slave, Ethernet TCP/IP, IO-Link, Serial RS-232C, Serial RS-422, Serial RS-485Max. number of remote I/O nodes256I/O systemNX I/O BusMax. number of expansion units63Product Weight (unpacked)946.468 g
