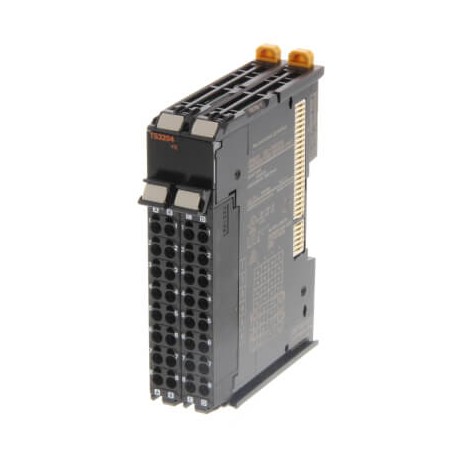

OMRON NX-TS3204 NX-TS3204 NX020061E NXTS3204 OMRON Unit NX 4 Sensor Inputs for Temperature, Pt100 (three-wire), resolution 0.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-TS3204 NX020061E NXTS3204 OMRON Unit NX 4 Sensor Inputs for Temperature, Pt100 (three-wire), resolution 0..

NX-TS3204

NX020061E

NXTS3204

OMRON

1 Pcs.

Unit NX - 4 Sensor Inputs for Temperature, Pt100 (three-wire), resolution 0.001°C max., 60 ms/Unit 4 Temperature Sensor Inputs, Pt100 (3-wire), Pt1000 (3-wire) resolution 0.001°C, 60 ms/Unit, screwless push-in connectors, 24 mm wide

Automation > Fieldbus, decentr. periphery - analogue I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This NX-TS3204 NX020061E NXTS3204 OMRON Unit NX 4 Sensor Inputs for Temperature, Pt100 (three-wire), resolution 0.. serves as a specialized temperature sensing unit within modular control systems. Temperature measurement units acquire thermal data from industrial environments, feeding precise measurements back to the main controller for reliable process regulation.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of electric connection (EF003961): Spring clamp connection
  • Output, current (EF003212): No
  • Radio standard UMTS (EF008525): No
  • Input, voltage (EF003205): No
  • Input, thermocouple (EF003208): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Analogue inputs configurable (EF008518): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Input, current (EF003204): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Analogue outputs configurable (EF008519): No
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No

More info

▲
I/O systemNX I/O BusType of moduleAnalog I/ONumber of analog inputs4Temperature input typePt100, Pt1000Linear analog input typeNoneResolution of the analog inputs20 BitInput circuit typeSingle-endedNumber of analog outputs0Linear analog output typeNoneResolution of the analog outputs0 BitConversion time60 ms/unitSignal processingFree runningIO-Link masterI/O connection typePush-inNumber of I/O connectors2Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneDegree of protection (IP)IP20Product Height (unpacked)100 mmProduct Width (unpacked)24 mmProduct Depth (unpacked)80 mmProduct Weight (unpacked)140 g
