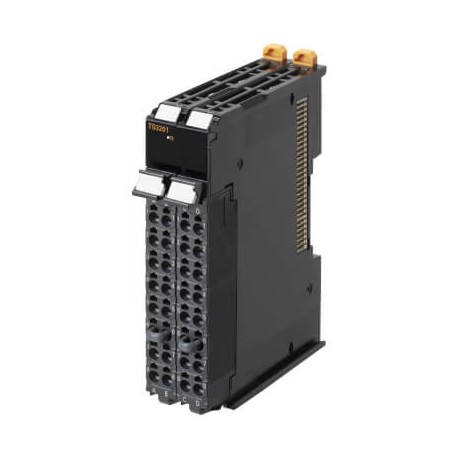

OMRON NX-TS3202 NX-TS3202 NX020060G NXTS3202 OMRON Unit NX 4 Inputs, Pt100 (3 wire) 0.01°C max. 10 ms View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-TS3202 NX020060G NXTS3202 OMRON Unit NX 4 Inputs, Pt100 (3 wire) 0.01°C max. 10 ms

NX-TS3202

NX020060G

NXTS3202

OMRON

1 Pcs.

Unit NX - 4 Inputs, Pt100 (3 wire) 0.01°C max. 10 ms 4 Temperature Sensor Inputs, Pt100 (3-wire), resolution 0.01°C, 10 ms/Unit, screwless push-in connectors, 24 mm wide

Automation > Fieldbus, decentr. periphery - analogue I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Unit NX is utilized in automation setups to interface specialized temperature sensors and measurement devices with a central control CPU. These modules provide accurate signal processing for industrial monitoring applications, ensuring stable data transmission across machine networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ for the Omron NX-TS3202.

  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of electric connection (EF003961): Spring clamp connection
  • Output, current (EF003212): No
  • Radio standard UMTS (EF008525): No
  • Input, voltage (EF003205): No
  • Input, thermocouple (EF003208): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Analogue inputs configurable (EF008518): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Input, current (EF003204): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Analogue outputs configurable (EF008519): No
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No

More info

▲
I/O systemNX I/O BusType of moduleAnalog I/ONumber of analog inputs4Temperature input typePt100Linear analog input typeNoneResolution of the analog inputs17 BitInput circuit typeSingle-endedNumber of analog outputs0Linear analog output typeNoneResolution of the analog outputs0 BitConversion time10 ms/unitSignal processingFree runningIO-Link masterI/O connection typePush-inNumber of I/O connectors2Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneDegree of protection (IP)IP20Product Height (unpacked)100 mmProduct Width (unpacked)24 mmProduct Depth (unpacked)80 mmProduct Weight (unpacked)140 g
