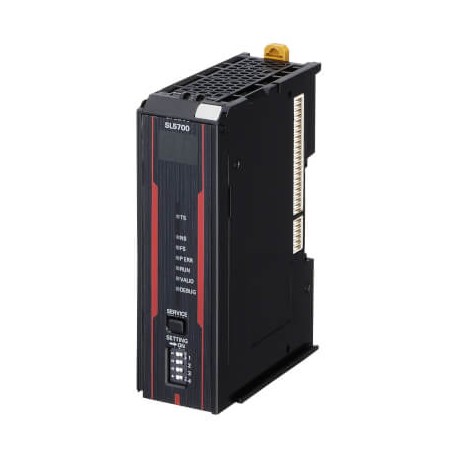

NX-SL5700 NXS30010B NXSL5700 OMRON Safety controller, IPC-S and EtherCAT, 254 connections master security, u..
NX-SL5700
NXS30010B
NXSL5700
OMRON
1 Pcs.
Safety controller, IPC-S and EtherCAT, 254 connections master security, until 2032 safety I/O, 4 MB of memory capacity, compatible with backup/restore to/from SD card
Safety controller, CIP-S and EtherCAT, 254 safety master connections, up to 2032 safety I/O, 4 MB memory capacity, SD Backup/Restore supported
Automation > PLC CPU-module
NX-safety
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
I/O systemNX I/O BusType of moduleSafety controlNumber of digital inputs00Number of digital outputs00Number of analog inputs00Number of analog outputs00Signal processingSynchronousIO-Link masterSuitable for safety functionsSIL according to IEC 615083Communication port(s)NoneMemory size4096 kByteProduct Height (unpacked)100 mmProduct Width (unpacked)30 mmProduct Depth (unpacked)71 mmProduct Weight (unpacked)130 g
| Feature Name | Feature Value |
|---|---|
| Performance level according to EN ISO 13849-1 (EF007399) | Level e |
| Model (EF000010) | Modular |
| SIL according to IEC 61508 (EF009889) | 3 |
| Voltage type (supply voltage) (EF002991) | DC |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Type of memory (EF002996) | EEPROM |
| Radio standard UMTS (EF008525) | No |
| Supporting protocol for EtherCAT (EF017564) | Yes |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Supporting protocol for SERCOS (EF006657) | No |
| IO link master (EF007298) | No |
| Rack-assembly possible (EF007018) | Yes |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for IEC 60870 (EF016069) | No |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Supporting protocol for DNP3 (EF016068) | No |
| Radio standard GSM (EF008524) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for IEC 61850 Ethernet (EF015389) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| System accessory (EF004118) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Radio standard GPRS (EF008523) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Additional program memory possible (EF003029) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Redundancy (EF003156) | Yes |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Radio standard Bluetooth (EF007178) | No |
| Suitable for safety functions (EF001597) | Yes |
| With display (EF000458) | No |
| With optical interface (EF003028) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Supporting protocol for ASI (EF003051) | No |
| Number of HW-interfaces other (EF003027) | 1 |
| Memory size (EF002997) | 4096 kByte |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Width (EF000008) | 30 mm |
| Number of digital inputs (EF001992) | 0 |
| Depth (EF000049) | 71 mm |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of analogue inputs (EF001994) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of digital outputs (EF001993) | 0 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of analogue outputs (EF001995) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Height (EF000040) | 100 mm |
| Supply voltage DC (EF007534) | 20.4 V |
